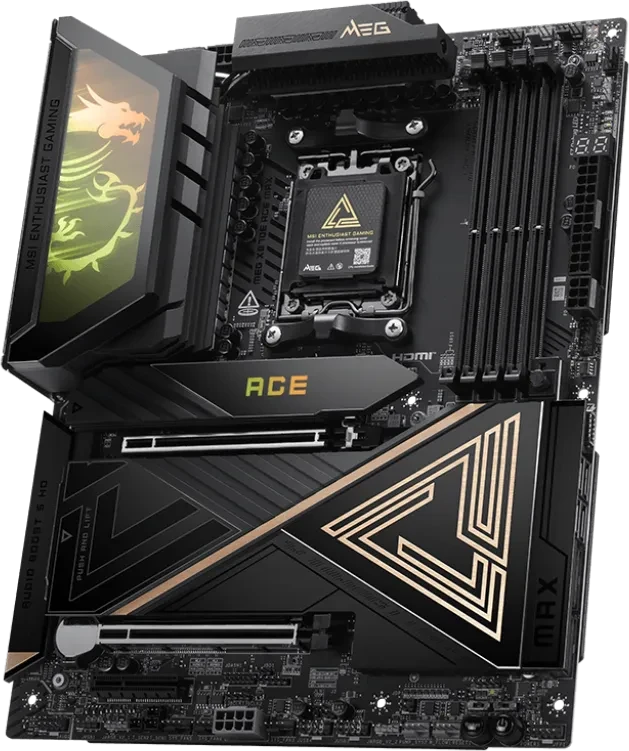

Piegāde visā Vācijā un iespēja saņemt pasūtījumu izsniegšanas punktā. Ērti norēķinu veidi. Iespēja apmaksat tieši interneta veikalā, ar karti vai skaidrā naudā preces saņemšanas punkta. Detalizēts preču apraksts un salīdzināšanas iespēja. Populārākie zīmoli no pasaules ražotājiem.  672,10 € Preces ID: 42164 Pamatplate MSI MEG X870E Ace MAX Black (7E85-001R) PamataRažotājs ........................................................................................................................................................................................................ Ražotāja kods ........................................................................................................................................................................................................ 7E85-001R Socket ........................................................................................................................................................................................................ AM5 Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................ AMD X870E AtmiņaAtmiņas veids ........................................................................................................................................................................................................ DDR5 Atmiņas slotu skaits ........................................................................................................................................................................................................ 4 Diska kontrolieriSATA kontrolieris ........................................................................................................................................................................................................ 4 x SATA-III (6 Gb/s) RAID atbalsts ........................................................................................................................................................................................................ 0, 1, 5, 10 Paplašināšanas slotiPaplašināšanas sloti ........................................................................................................................................................................................................ 2 x PCI-E x16, PCI-E x4, 5 x PCI-E M.2 M.2. slotu veids ........................................................................................................................................................................................................ M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................ PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
* PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot.
** Please refer to the PCIe configuration table in the manual for more details.
* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
** M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot.
*** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB Audio/VideoSkaņa ........................................................................................................................................................................................................ 8 kanāli (7.1) Audio kontrolieris ........................................................................................................................................................................................................ Realtek ALC4082 TīklsTīkla saskarne ........................................................................................................................................................................................................ 10 Gigabit Ethernet (10000 Mb/c), Wi-Fi, Bluetooth Tīkla kontrolieris ........................................................................................................................................................................................................ Realtek 8126 5Gbps, + 1x Marvell® AQC113CS 10Gbps LAN SaskarnesLigzdas aizmugurējā panelī ........................................................................................................................................................................................................ USB Type-C, USB 3.2, 2 x USB4 Gen 3x2, 2 x LAN, 5 x audio jacks, USB 3.2 Gen1, 9 x USB 3.2 Gen2, 2 x USB 4 Type-C, Thunderbolt 4/USB-C, S/PDIF (optiskais) PapilduLigzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................ 3-pin, 4-pin ATX 12 V barošanas ligzda ........................................................................................................................................................................................................ 2 x 8-pin Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................ 2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................ 3-pin RGB 12V savienotāji uz plates ........................................................................................................................................................................................................ 4-pin Formfaktors ........................................................................................................................................................................................................ ATX Piegādes veids ........................................................................................................................................................................................................ Retail Noformējumā izmantotās krāsas ........................................................................................................................................................................................................ dzeltens, melns PapildusGarantija ........................................................................................................................................................................................................ 12/24 men. Ražotāja mājās lapa ........................................................................................................................................................................................................ |
