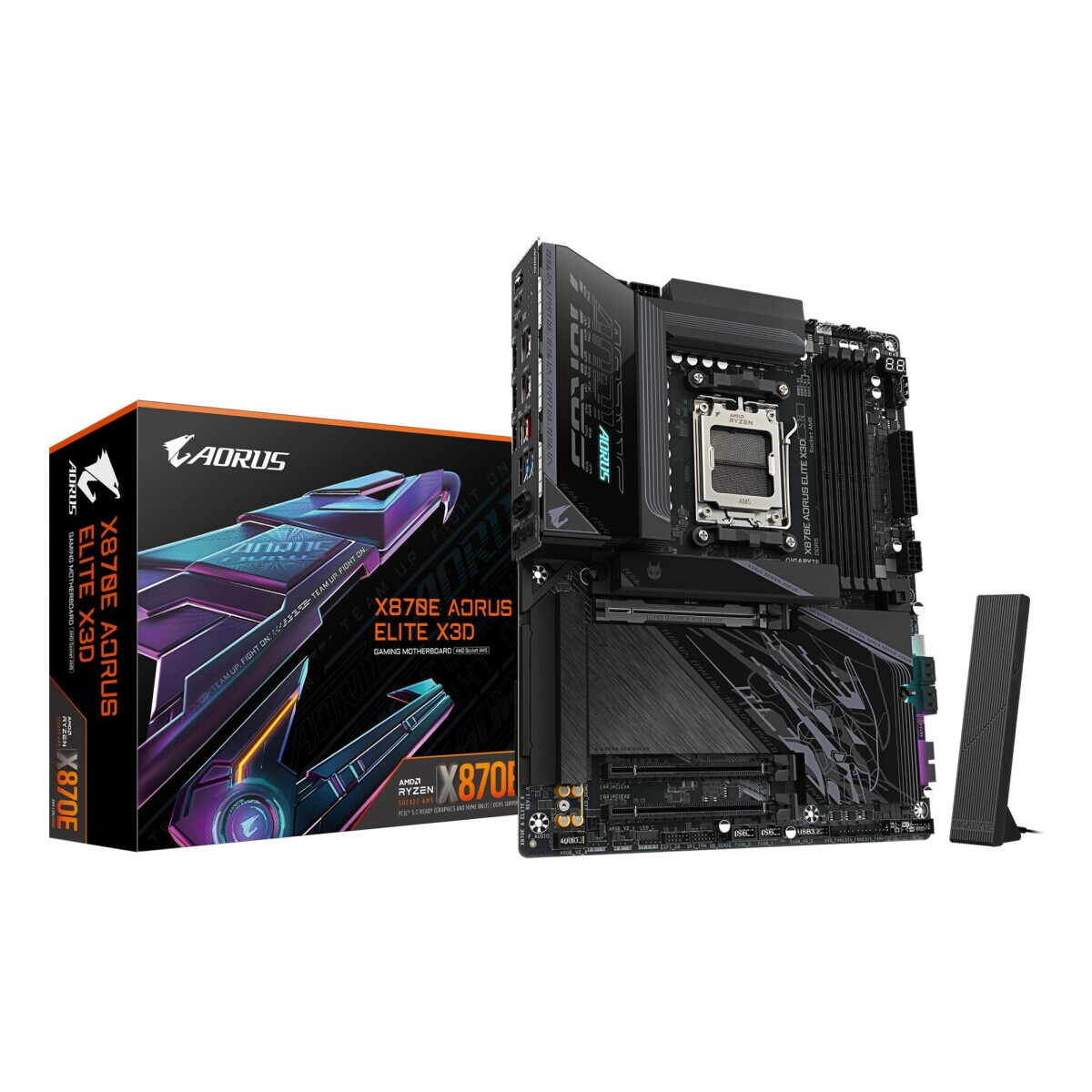

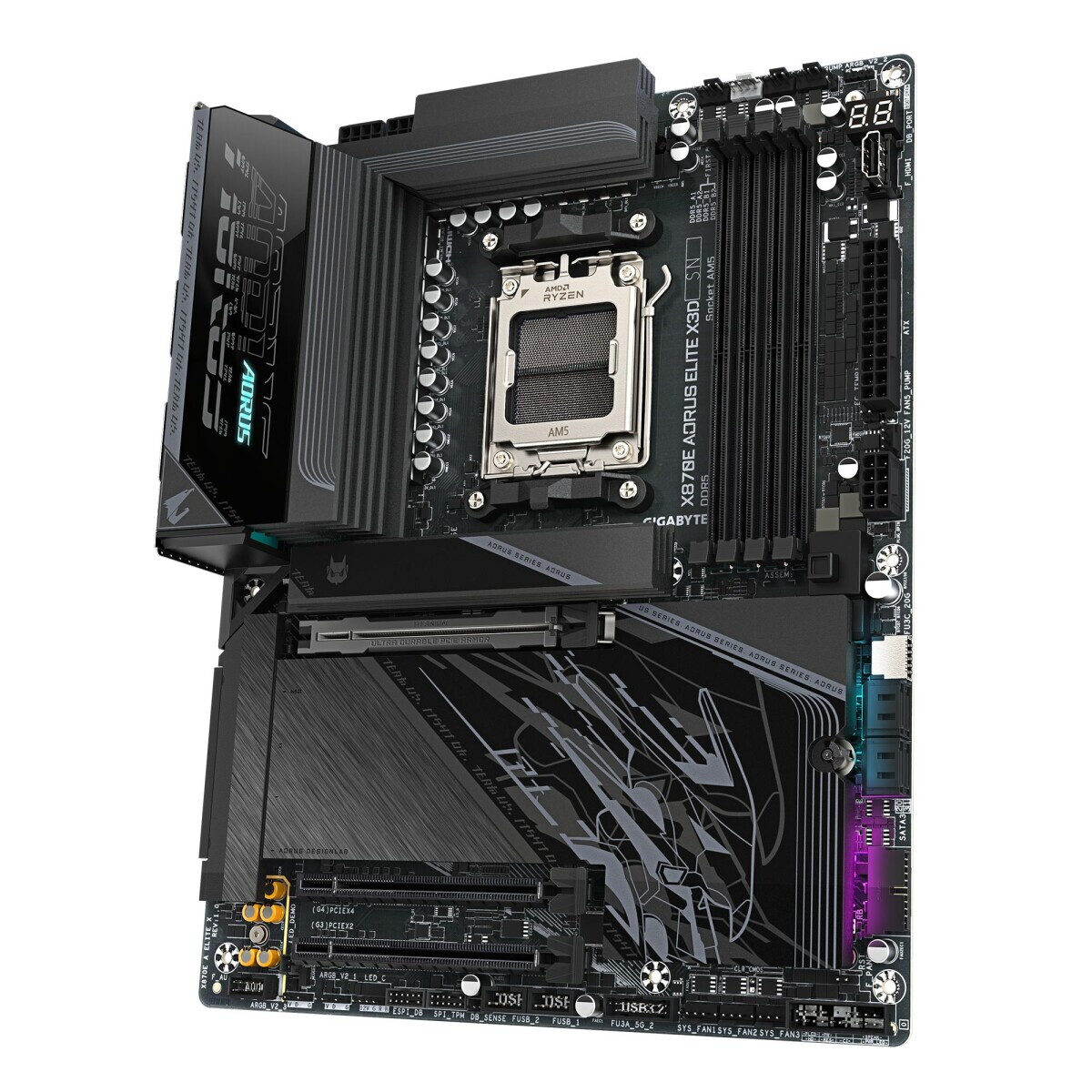

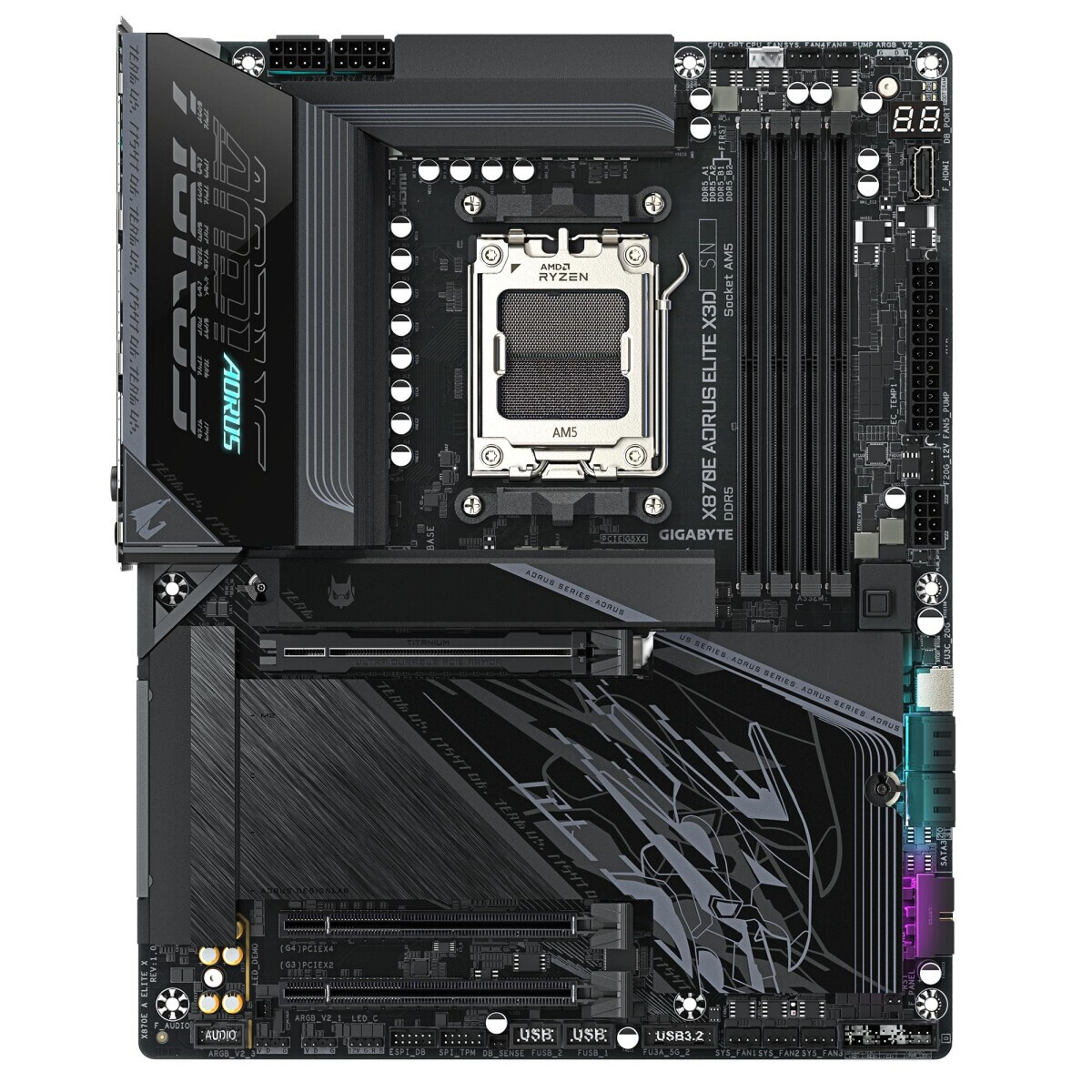

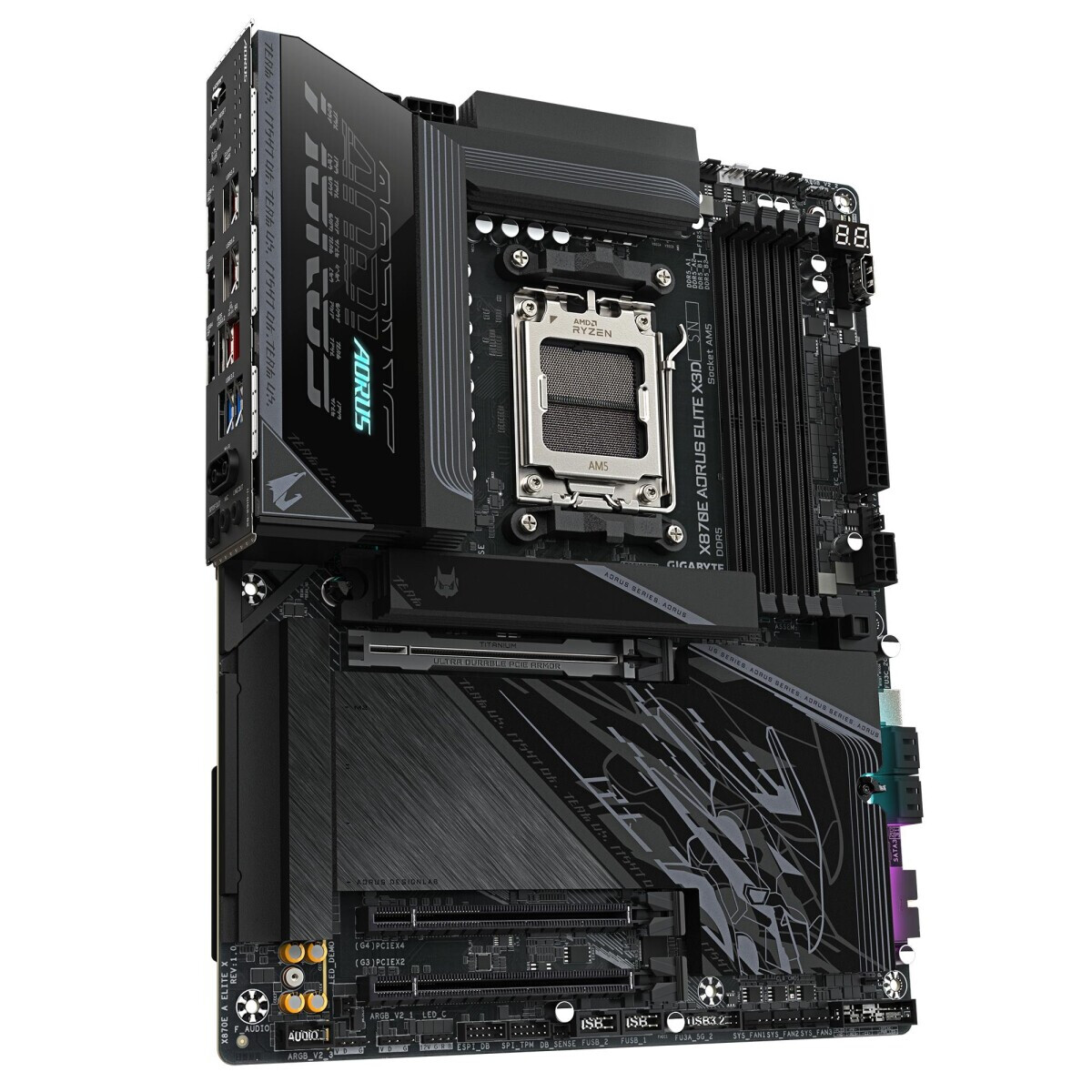

Mainboard GIGABYTE AMD X870E A ELITE X Black
ID: 37867
Produktzusammenfassung
- Der Steckdose: AM5
- Der Chipsatz: AMD X870E
- Anzahl der Speichersteckplätze: 4
- Speicherart: DDR5
- Erweiterungsschlitze: PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E M.2
- Netzwerkschnittstelle: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth
- Das Nest in der hinteren Verkleidung: USB4 Gen 3x2, LAN, audio jacks, 3 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optisch)
- Formfaktoren: ATX
Vollständige Spezifikationen
334,50 €334,50 €
Auf LagerPamata
Lieferant ........................................................................................................................................................................................................
Lieferantenkennung ........................................................................................................................................................................................................
X870E A ELITE X
Der Steckdose ........................................................................................................................................................................................................
AM5
Der Chipsatz ........................................................................................................................................................................................................
AMD X870E
Saskarnes
Das Nest in der hinteren Verkleidung ........................................................................................................................................................................................................
USB4 Gen 3x2, LAN, audio jacks, 3 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optisch)
Audio/Video
Klang ........................................................................................................................................................................................................
8 Kanäle (71)
Audiokontroller ........................................................................................................................................................................................................
Realtek ALC1220-VB
Das Gedächtnis
Speicherart ........................................................................................................................................................................................................
DDR5
Anzahl der Speichersteckplätze ........................................................................................................................................................................................................
4
Erweiterungsschlitze
Erweiterungsschlitze ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E M.2
Art der M2-Steckplatz ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting S
Unterstützte PCI-Express-Modi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Das Netzwerk
Netzwerkschnittstelle ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps), 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth
Netzwerkcontroller (oder Netzwerksteuerung) ........................................................................................................................................................................................................
Realtek 8126 5Gbps
Festplattencontroller
SATA-Controller ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID-Unterstützung ........................................................................................................................................................................................................
0, 1, 5, 10
Zusätzlich
Gehäuseventilatoranschlussstecker ........................................................................................................................................................................................................
4-pin
ATX 12 V Stromanschlussbuchse ........................................................................................................................................................................................................
8-pin
Interne USB-Anschlüsse auf dem Motherboard ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C
RGB 12V Verbindungsstecker auf Platte ........................................................................................................................................................................................................
4-pin
Formfaktoren ........................................................................................................................................................................................................
ATX
Lieferart ........................................................................................................................................................................................................
Retail
Die in der Form verwendet Farben ........................................................................................................................................................................................................
schwarz
Besonderes Merkmal
Garantie ........................................................................................................................................................................................................
12/24 monate
Manufacturer's website ........................................................................................................................................................................................................
Liebe Kunden, bitte lesen Sie die Produktbeschreibung auf der offiziellen Website des Herstellers, bevor Sie einen Kauf tätigen. Bitte überprüfen Sie mit dem Online-Shop-Manager die Spezifikationen, die Verfügbarkeit im Lager und den Preis. Der Hersteller kann das Aussehen, die Zusammensetzung oder die Spezifikationen ohne Vorankündigung ändern.
