- Pamatplate Asus A520 Pro A520M-C II/CSM Green (90MB18F0-M0EAYC)

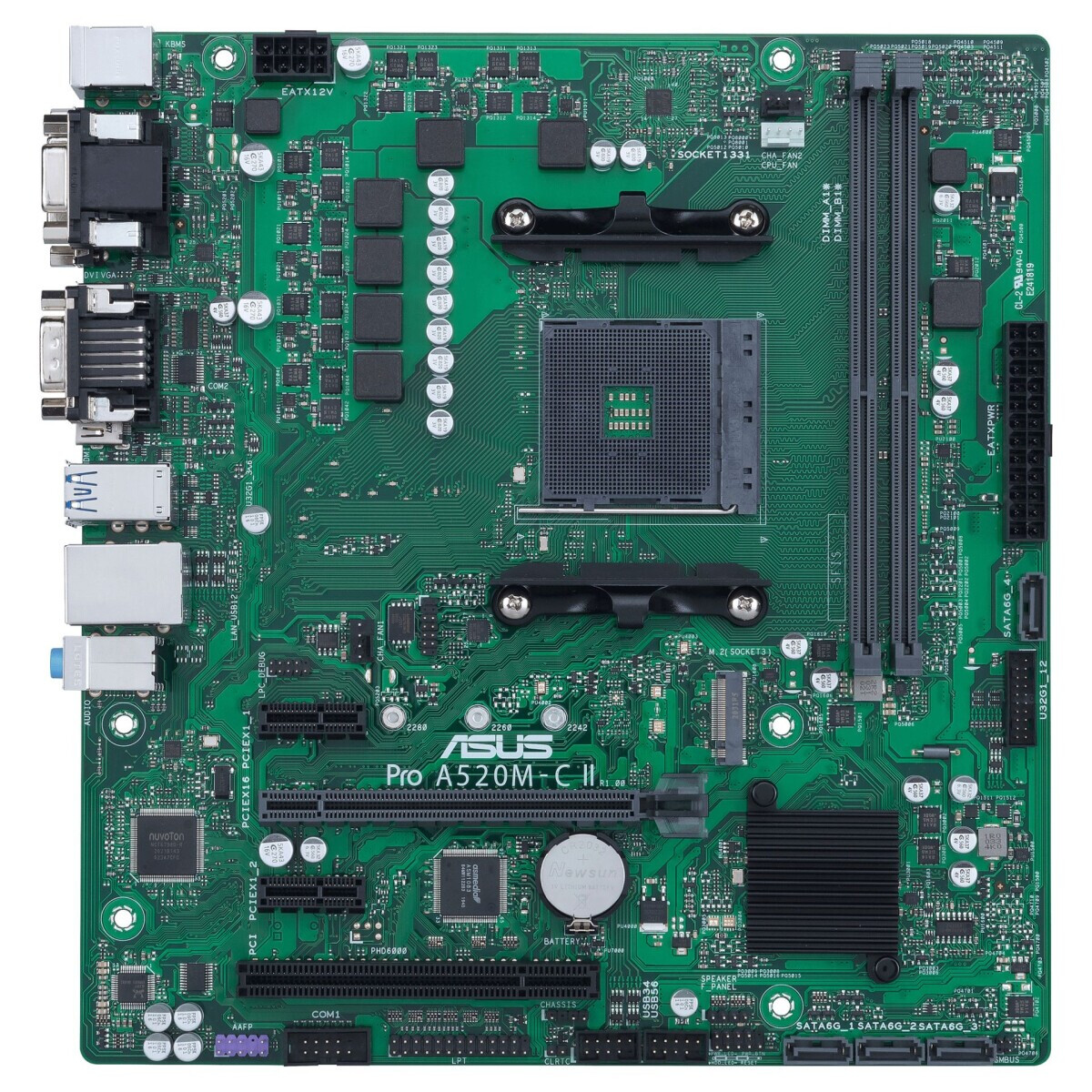

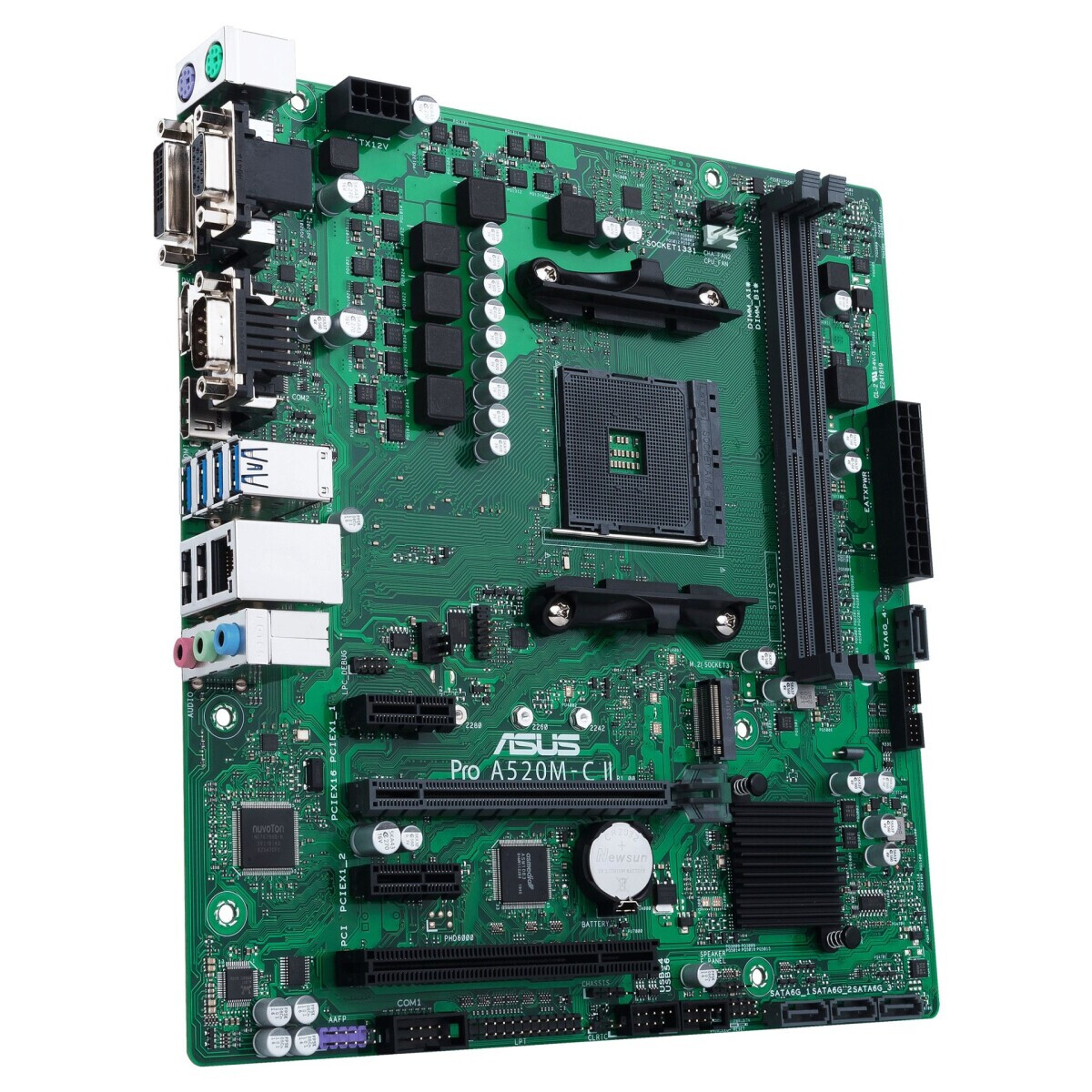

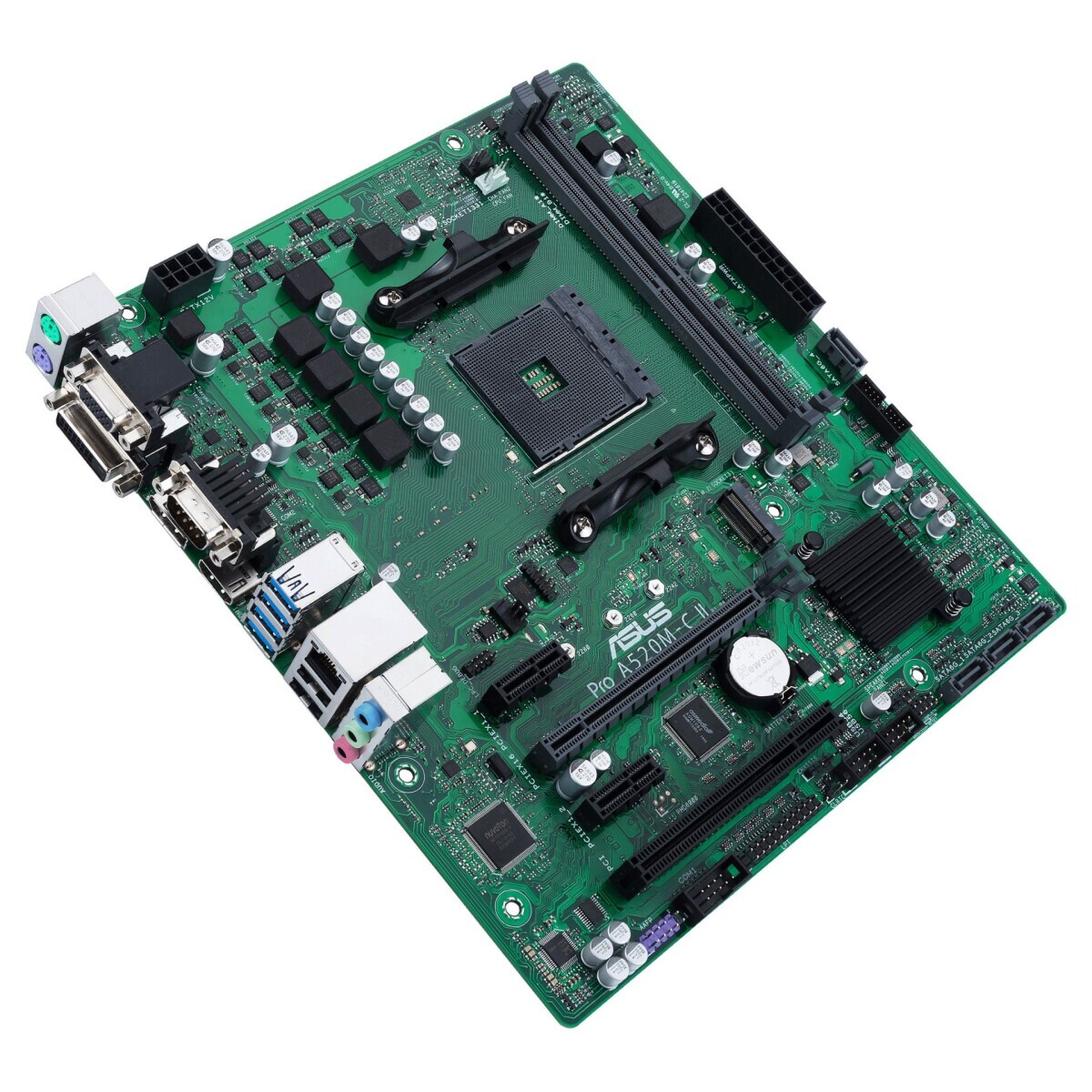

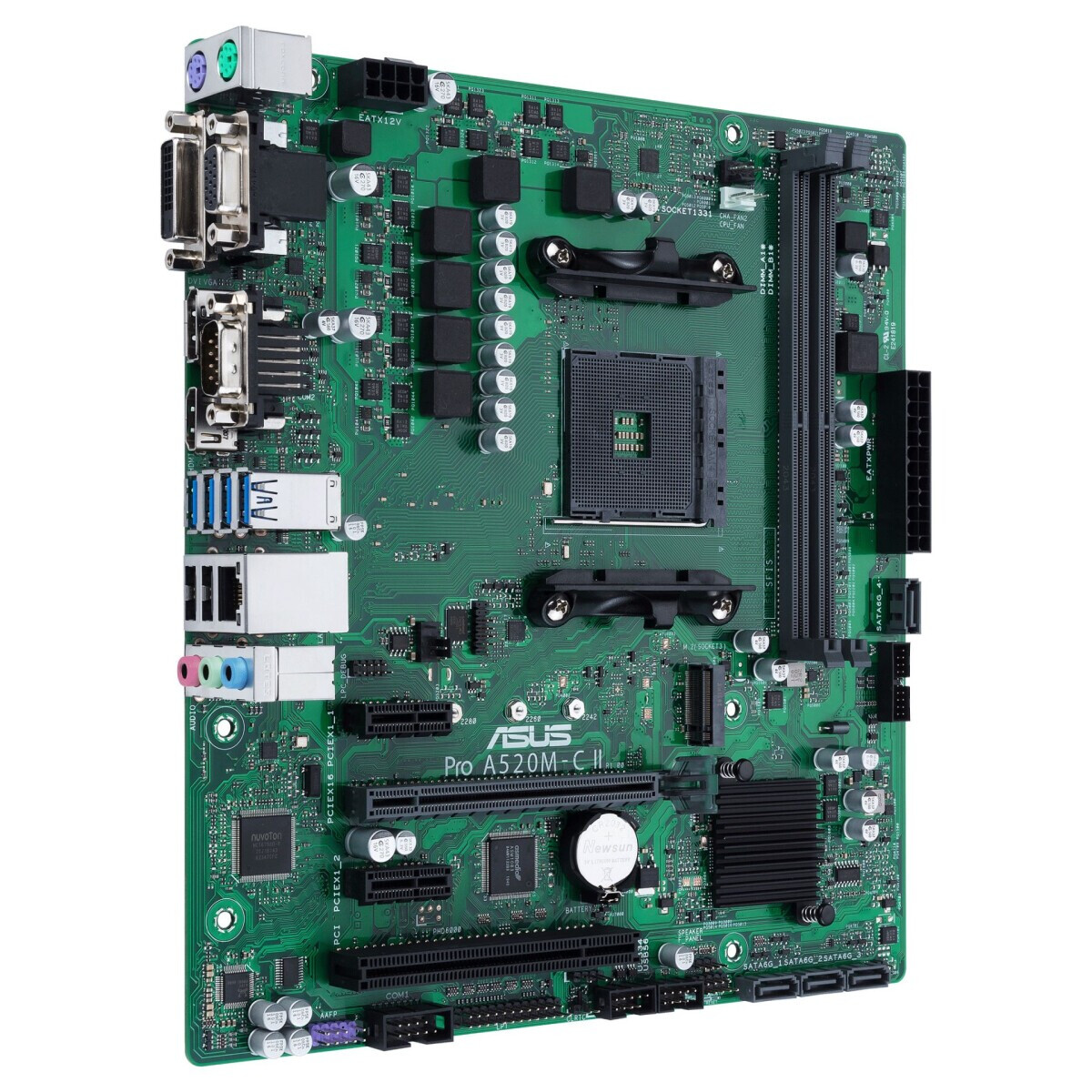

Pamatplate Asus A520 Pro A520M-C II/CSM Green (90MB18F0-M0EAYC)
ID: 41918
Īsi par preci
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD A520
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 3.0 x16, 2 x PCIe 3.0 x1, PCI, PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)

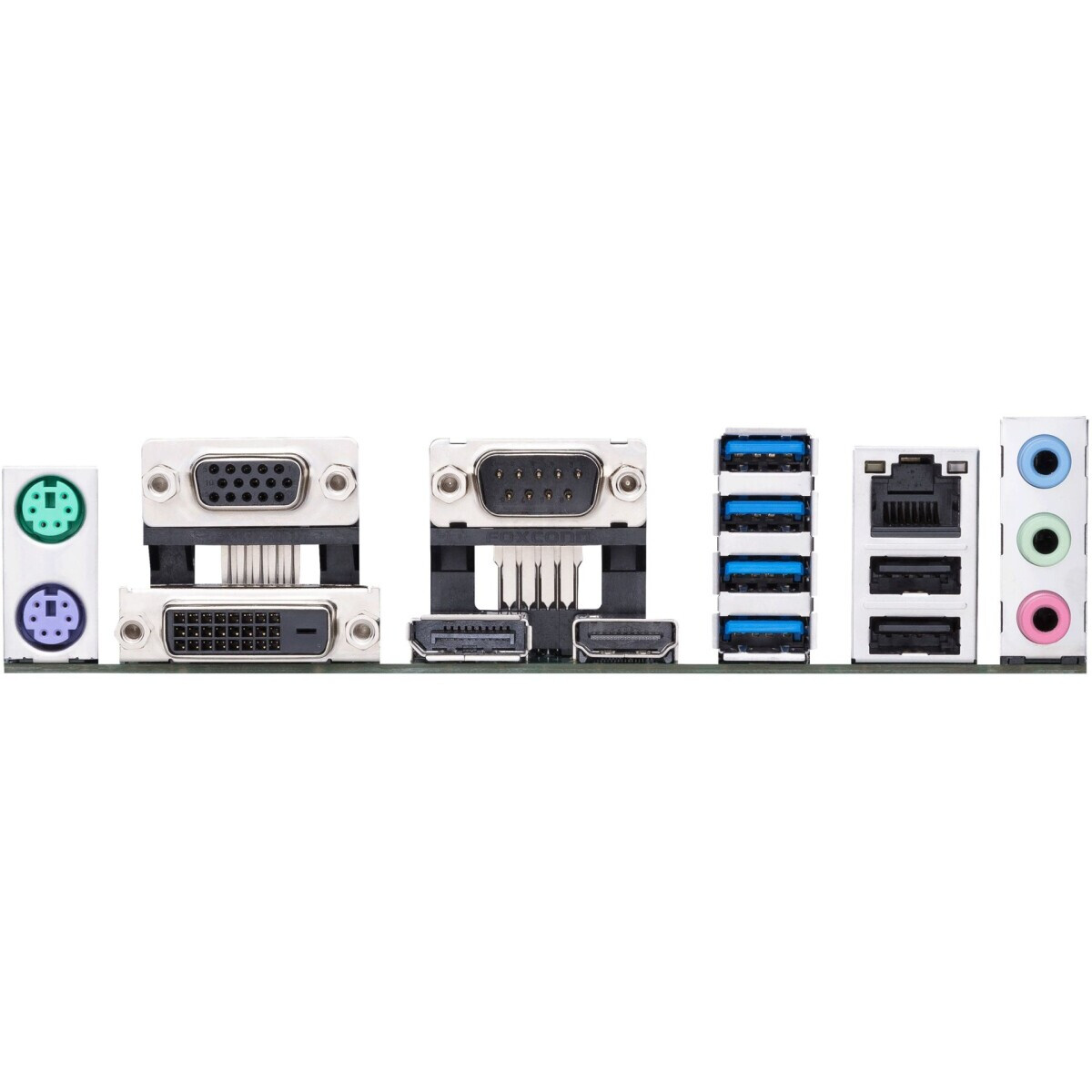

- Ligzdas aizmugurējā panelī: 2 x PS/2, 2 x USB 2.0, LAN, 3 x audio jacks, 4 x USB 3.2 Gen1, VGA, DVI, HDMI, DisplayPort, COM
- Formfaktors: mATX
Pilnas specifikācijas
88,10 €88,10 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB18F0-M0EAYC
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD A520
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x PS/2, 2 x USB 2.0, LAN, 3 x audio jacks, 4 x USB 3.2 Gen1, VGA, DVI, HDMI, DisplayPort, COM
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 3.0 x16, 2 x PCIe 3.0 x1, PCI, PCI-E M.2
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mb/c)
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
zaļš
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
