Katalog
PC-Komponenten
Mainboards

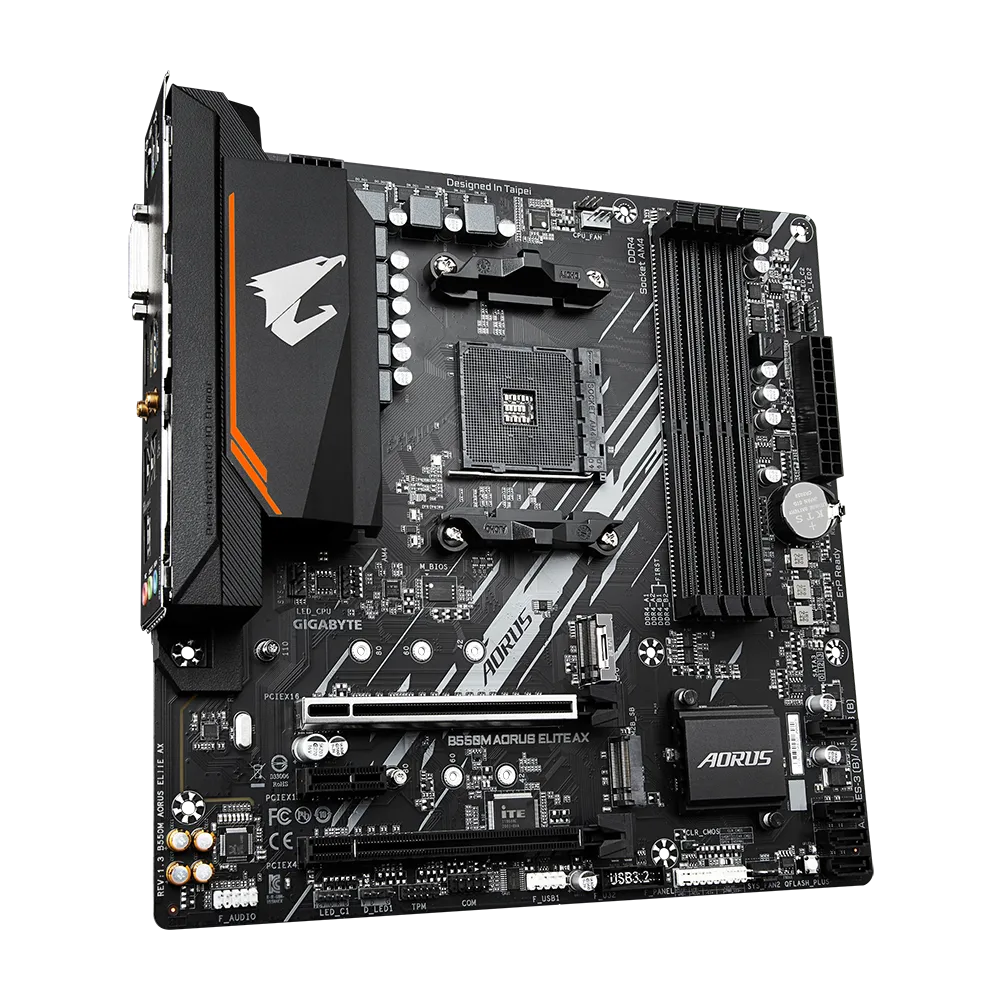

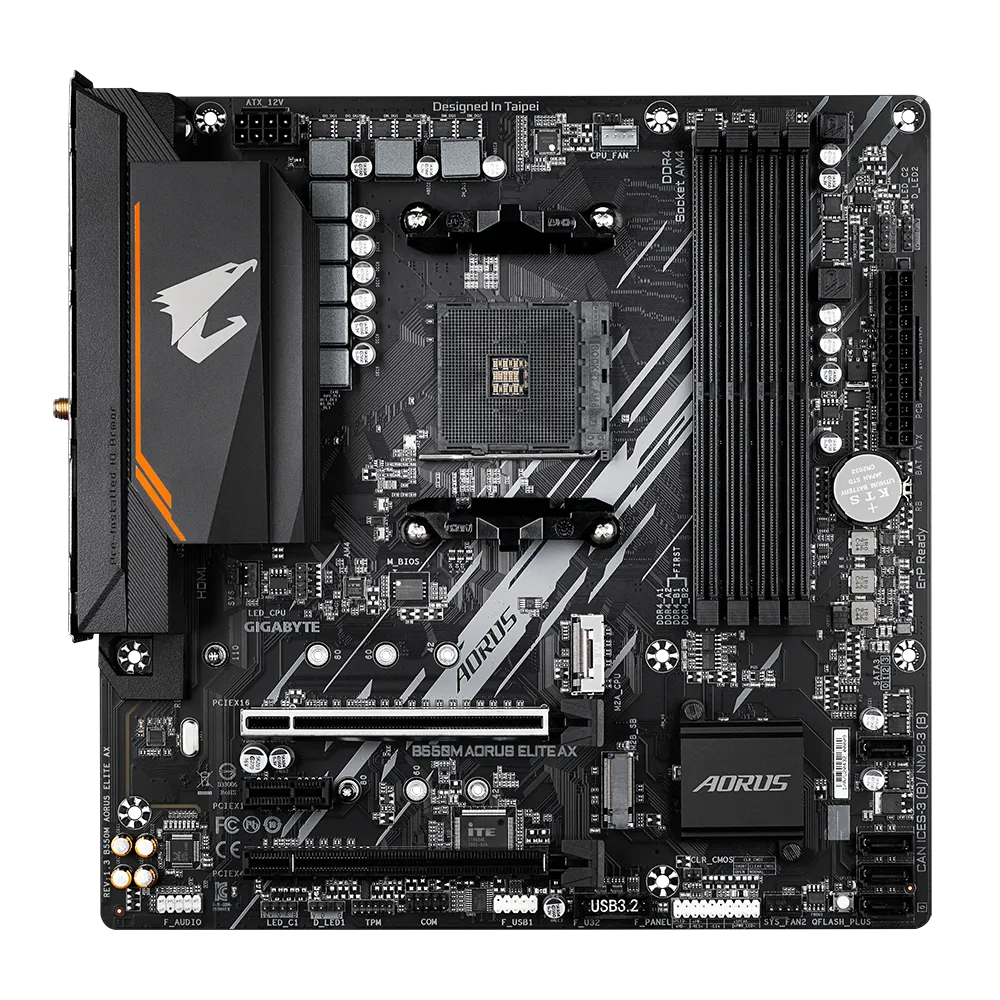

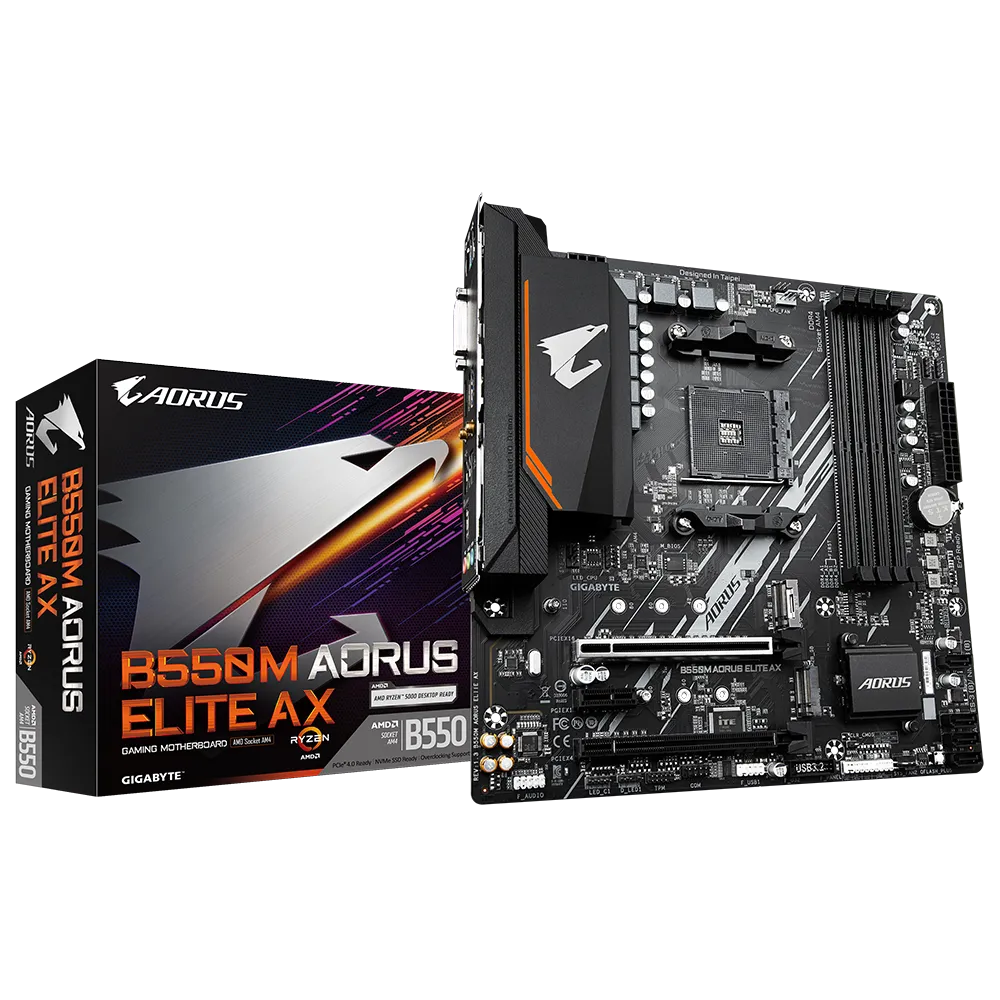

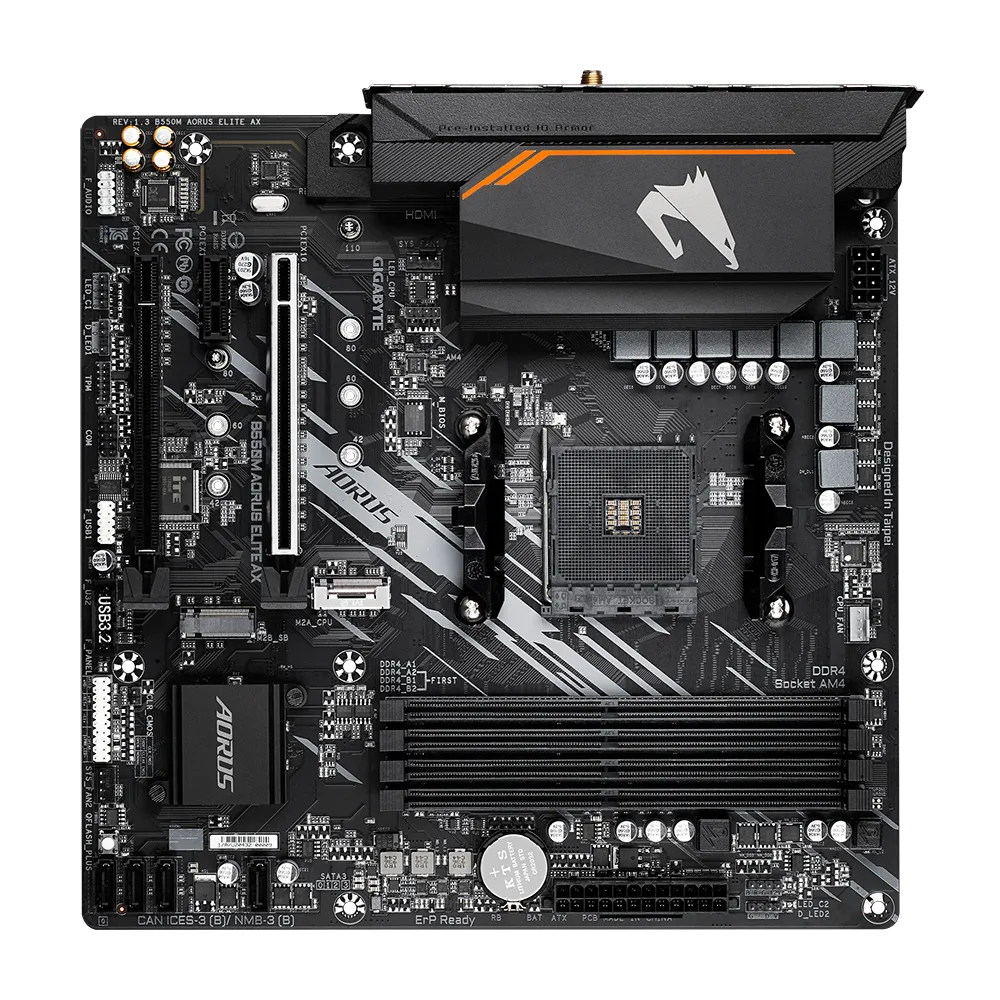

Mainboard GIGABYTE B550M AORUS ELITE AX (B550M AORUS ELITE AX)

Mainboard GIGABYTE B550M AORUS ELITE AX (B550M AORUS ELITE AX)

ID: 1713

Produktzusammenfassung

Der Steckdose: AM4
Der Chipsatz: AMD B550
Anzahl der Speichersteckplätze: 4
Speicherart: DDR4
Erweiterungsschlitze: PCI-E 3.0 x16, PCI-E x16, PCIe 3.0 x1, PCI-E M.2
Netzwerkschnittstelle: Gigabit Ethernet (10/100/1000 Mbps), Wi-Fi, Bluetooth
Das Nest in der hinteren Verkleidung: PS/2, USB 2.0, USB 3.2 Gen1, DVI, HDMI
Formfaktoren: mATX

Vollständige Spezifikationen

116,⁷⁰ €

Auf Lager

Spezifikationen

Pamata

Lieferant ........................................................................................................................................................................................................

Gigabyte

Lieferantenkennung ........................................................................................................................................................................................................

B550M AORUS ELITE AX

Der Steckdose ........................................................................................................................................................................................................

AM4

Der Chipsatz ........................................................................................................................................................................................................

AMD B550

Zusätzlich

Formfaktoren ........................................................................................................................................................................................................

mATX

Das Netzwerk

Netzwerkschnittstelle ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps), Wi-Fi, Bluetooth

Audio/Video

Klang ........................................................................................................................................................................................................

8 Kanäle (71)

Das Gedächtnis

Speicherart ........................................................................................................................................................................................................

DDR4

Anzahl der Speichersteckplätze ........................................................................................................................................................................................................

Saskarnes

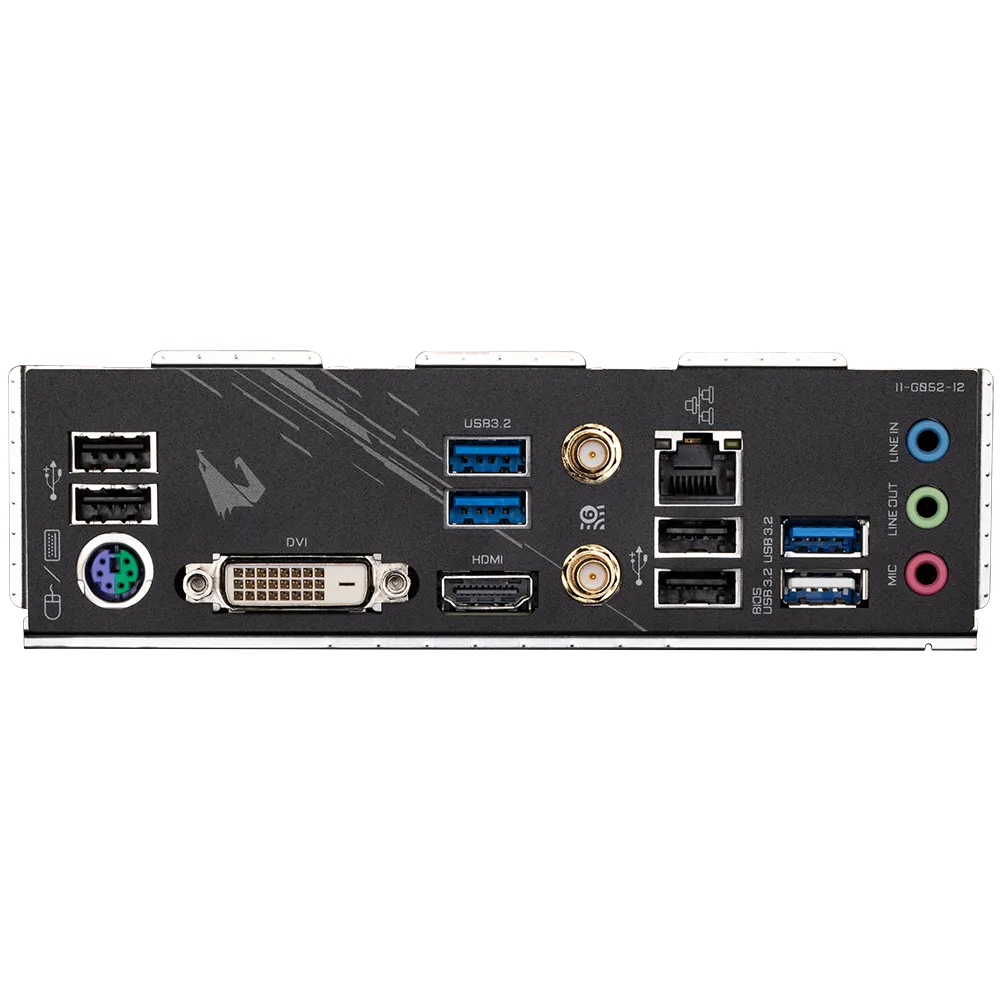

Das Nest in der hinteren Verkleidung ........................................................................................................................................................................................................

PS/2, USB 2.0, USB 3.2 Gen1, DVI, HDMI

Festplattencontroller

SATA-Controller ........................................................................................................................................................................................................

SATA-III (6 Gb/s)

RAID-Unterstützung ........................................................................................................................................................................................................

0, 1, 10

Erweiterungsschlitze

Erweiterungsschlitze ........................................................................................................................................................................................................

PCI-E 3.0 x16, PCI-E x16, PCIe 3.0 x1, PCI-E M.2

Art der M2-Steckplatz ........................................................................................................................................................................................................

x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10

Unterstützte PCI-Express-Modi ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode

Besonderes Merkmal

Garantie ........................................................................................................................................................................................................

12/24 monate

Manufacturer's website ........................................................................................................................................................................................................

gigabyte.com

Liebe Kunden, bitte lesen Sie die Produktbeschreibung auf der offiziellen Website des Herstellers, bevor Sie einen Kauf tätigen. Bitte überprüfen Sie mit dem Online-Shop-Manager die Spezifikationen, die Verfügbarkeit im Lager und den Preis. Der Hersteller kann das Aussehen, die Zusammensetzung oder die Spezifikationen ohne Vorankündigung ändern.

‌
