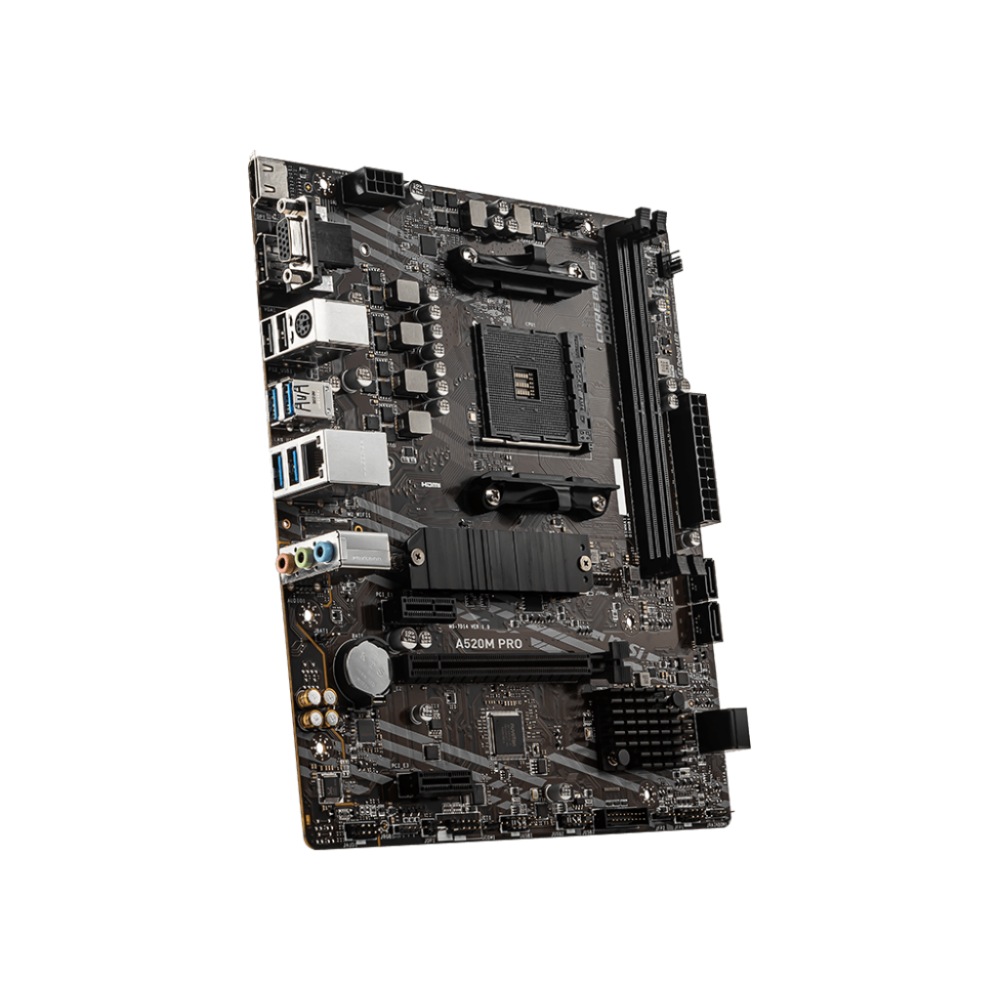

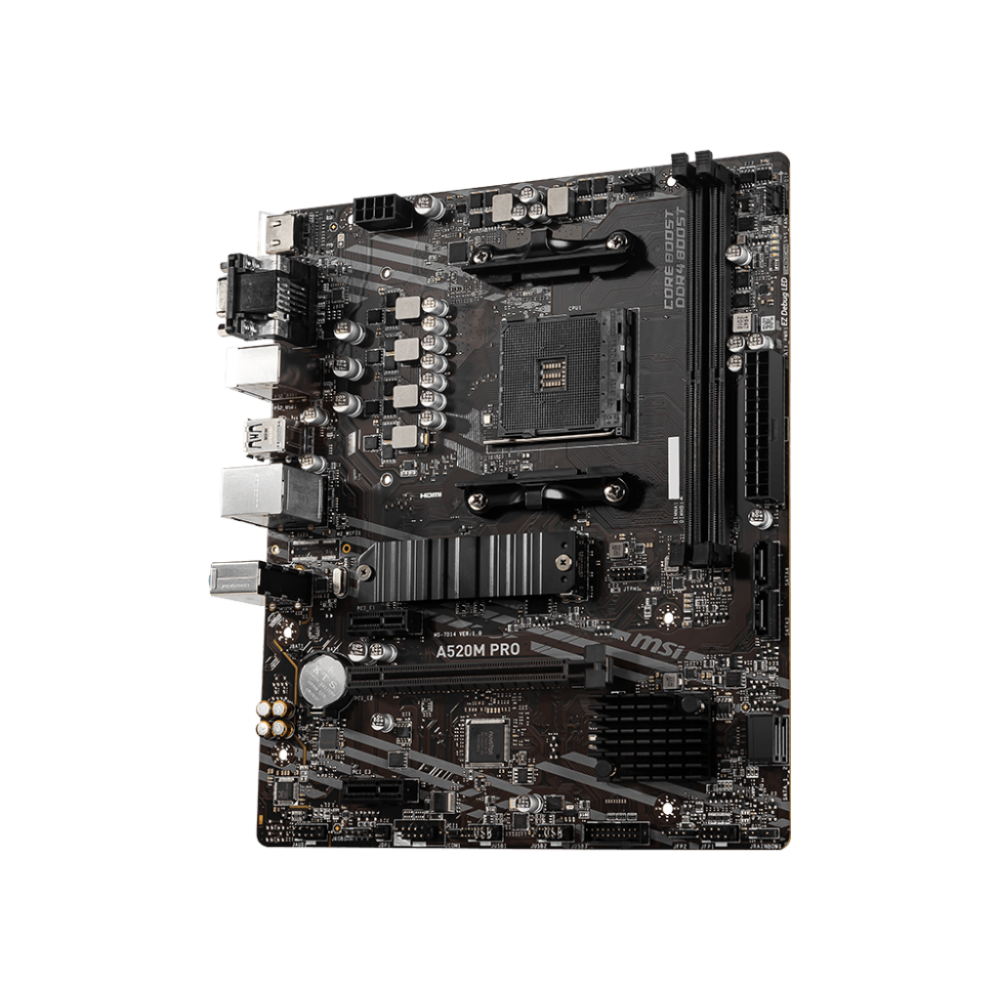

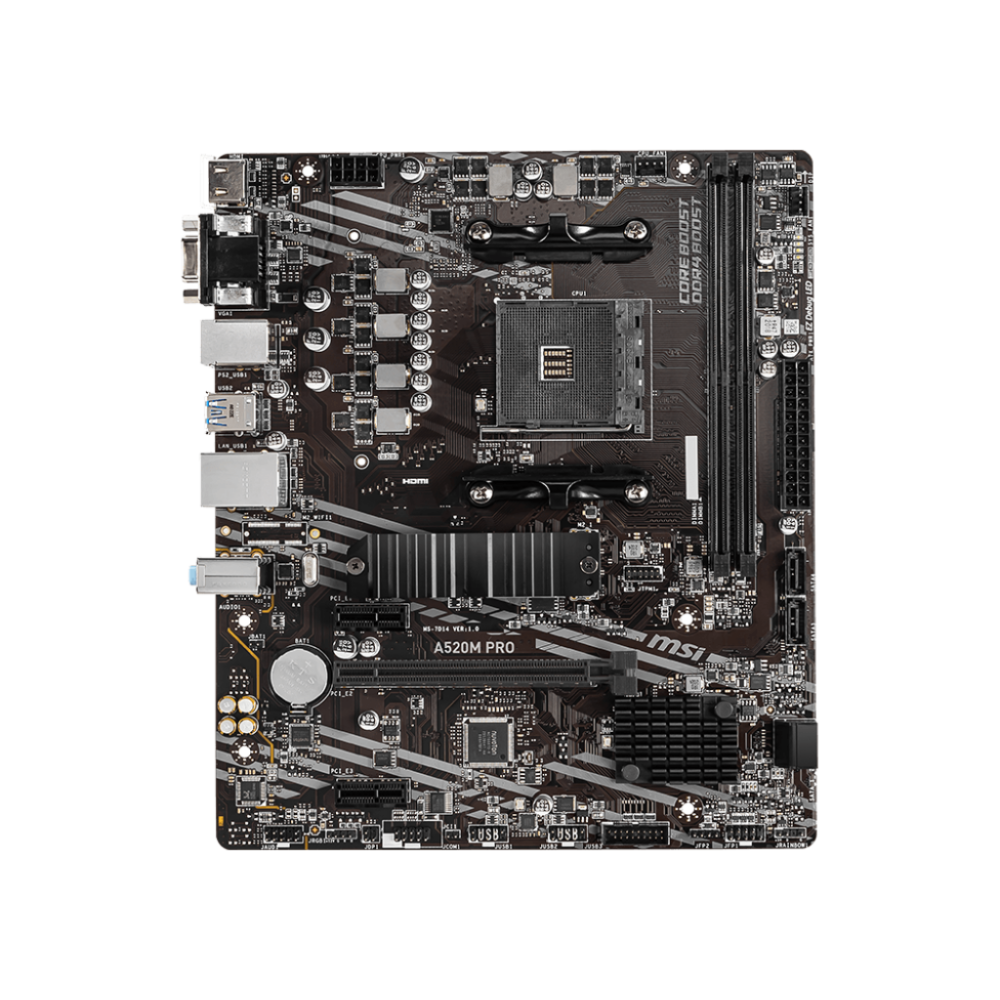

Pamatplate MSI A520 A520M PRO (7D14-005R)

ID: 1878

Īsi par preci

Socket: AM4
Mikroshēmu kopa (Chipset): AMD A520
Atmiņas slotu skaits: 2
Atmiņas veids: DDR4
Paplašināšanas sloti: 2 x PCIe 3.0 x1, PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)

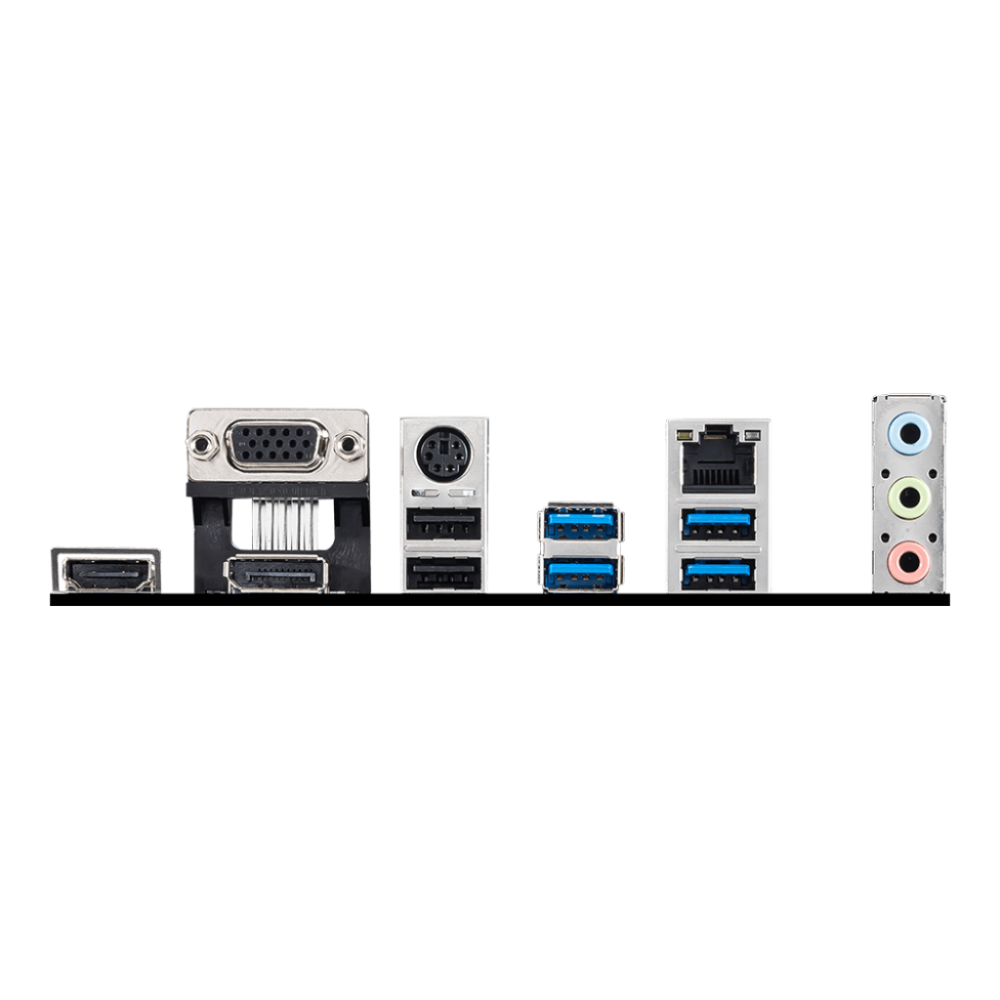

Ligzdas aizmugurējā panelī: PS/2, LAN, 4 x USB 3.2 Gen1, VGA, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

62,⁹⁰ €

Ir noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

7D14-005R

Socket ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD A520

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, LAN, 4 x USB 3.2 Gen1, VGA, HDMI, DisplayPort, RJ-45

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCIe 3.0 x1, PCI-E M.2

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC892

Papildu

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
