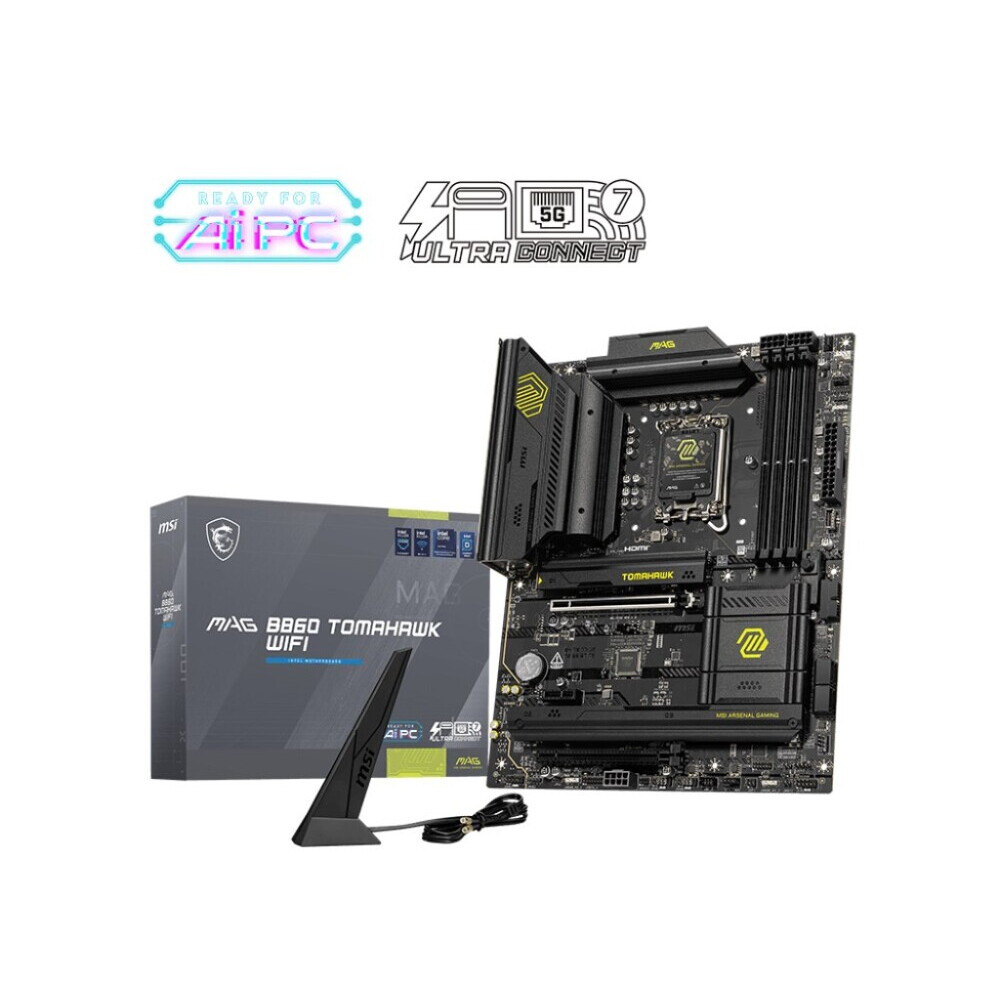

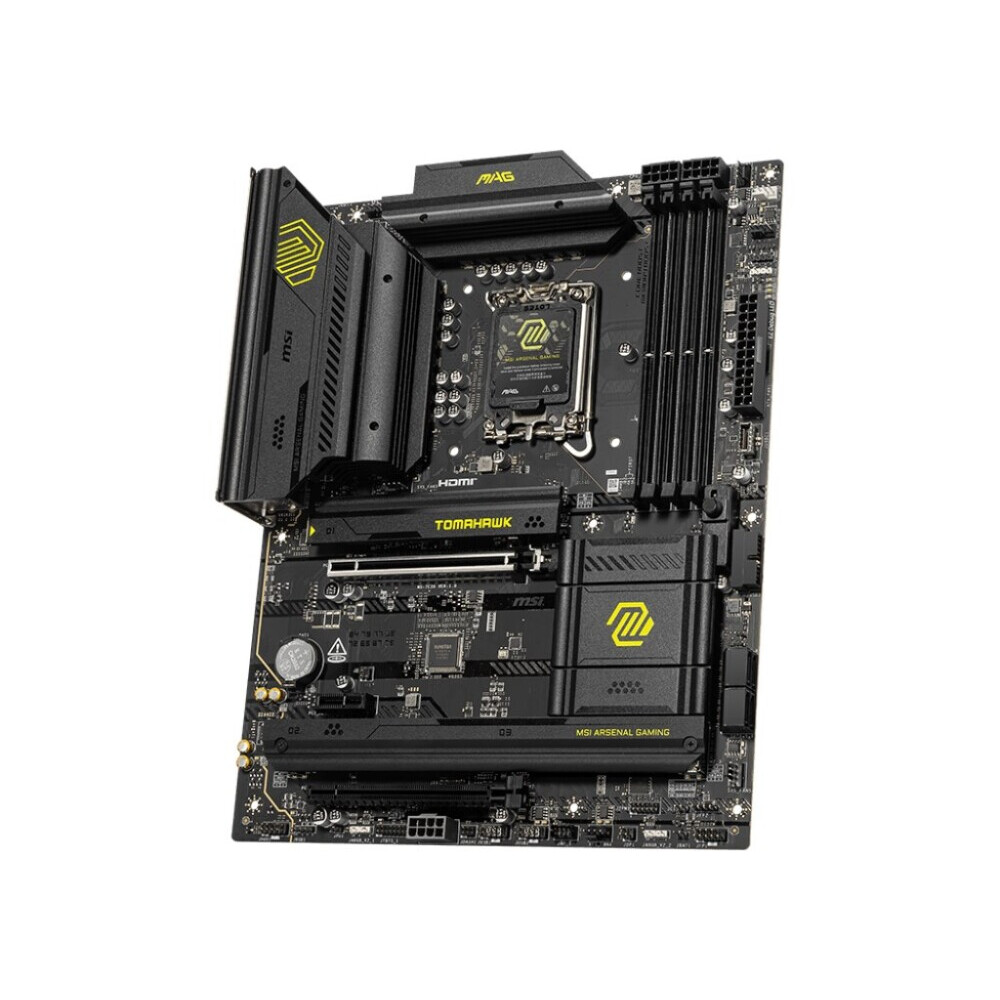

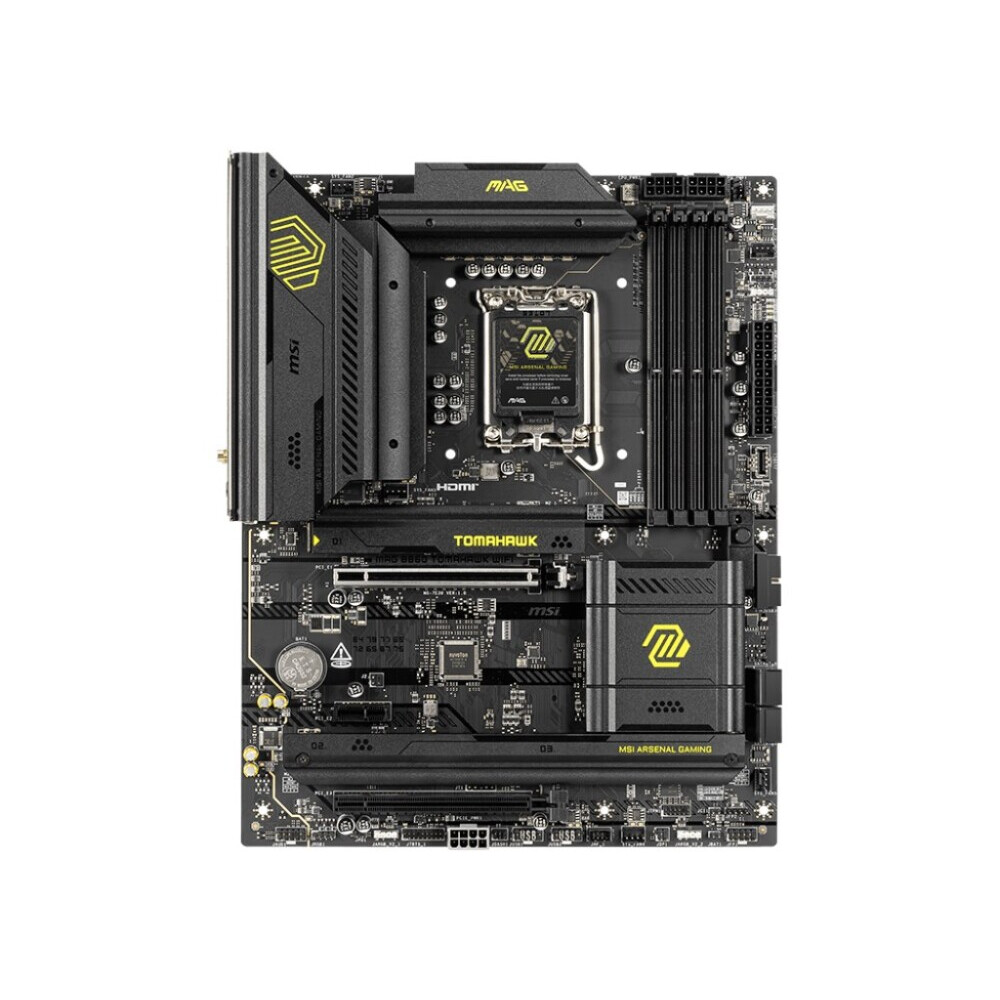

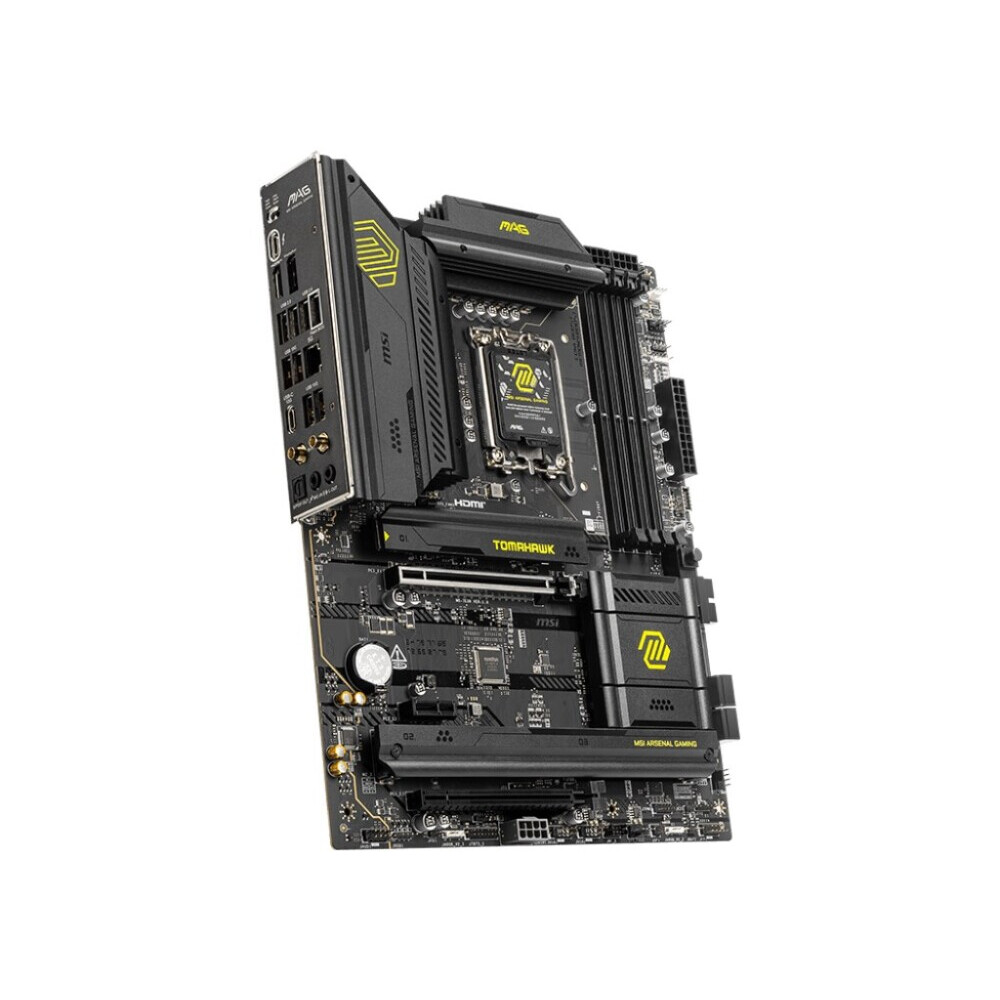

Pamatplate MSI MAG B860 TOMAHAWK WIFI

ID: 1884

Produktzusammenfassung

Ligzda: LGA1851
Mikroshēmu kopa (Chipset): Intel B860
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2
Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, RJ-45
Formfaktors: ATX

Vollständige Spezifikationen

191,⁸⁰ €

Auf Lager

Spezifikationen

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

MAG B860 TOMAHAWK WIFI

Ligzda ........................................................................................................................................................................................................

LGA1851

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B860

Saskarnes

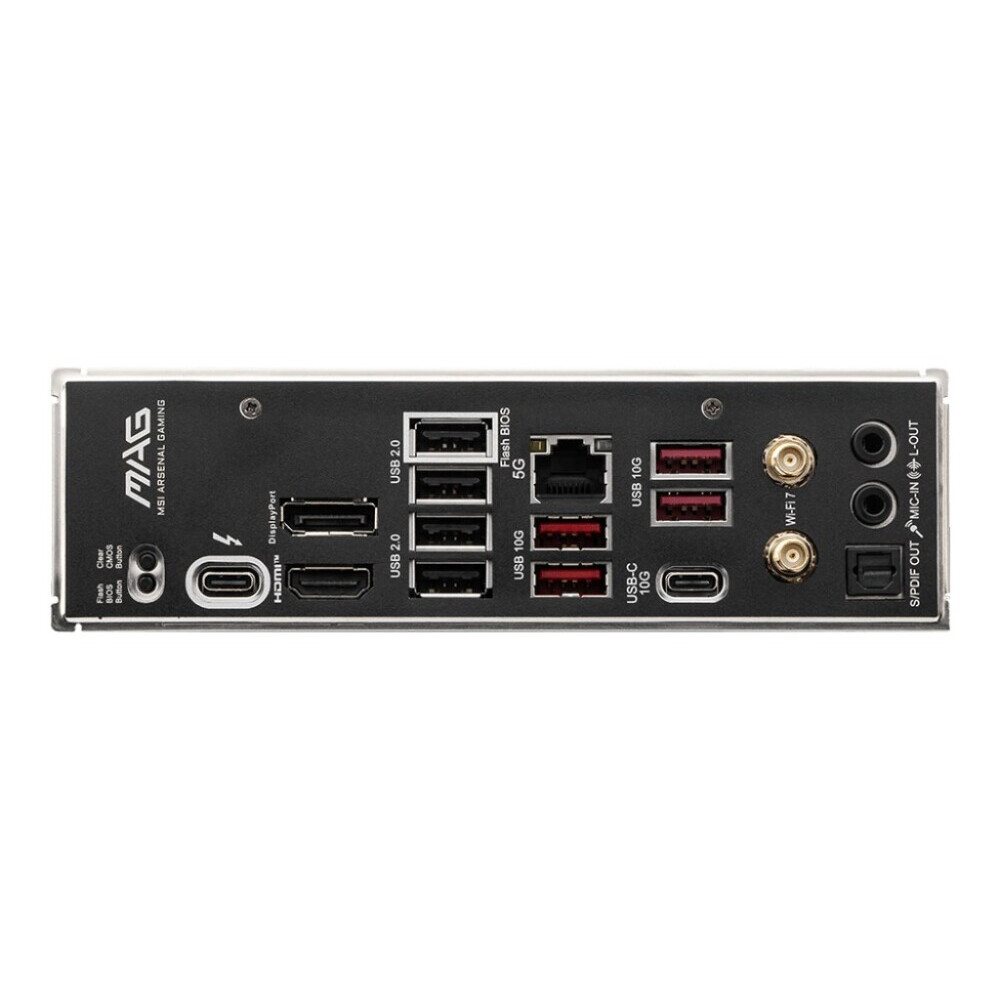

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5, SDRAM

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

5 Gigabit Ethernet (100/1000/2500/5000 Mbps), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel Killer BE1750x

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

5 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, 4 x USB 2.0, USB 3.2 Gen2

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Liebe Kunden, bitte lesen Sie die Produktbeschreibung auf der offiziellen Website des Herstellers, bevor Sie einen Kauf tätigen. Bitte überprüfen Sie mit dem Online-Shop-Manager die Spezifikationen, die Verfügbarkeit im Lager und den Preis. Der Hersteller kann das Aussehen, die Zusammensetzung oder die Spezifikationen ohne Vorankündigung ändern.

‌
