Pamatplate GIGABYTE TRX50 AI TOP

ID: 1957

Īsi par preci

Socket: AM5
Mikroshēmu kopa (Chipset): AMD TRX50
Atmiņas slotu skaits: 8
Atmiņas veids: DDR5
Paplašināšanas sloti: 3 x PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2
Tīkla saskarne: 2 x 10 Gigabit Ethernet (10000 Mb/c), Wi-Fi, Bluetooth

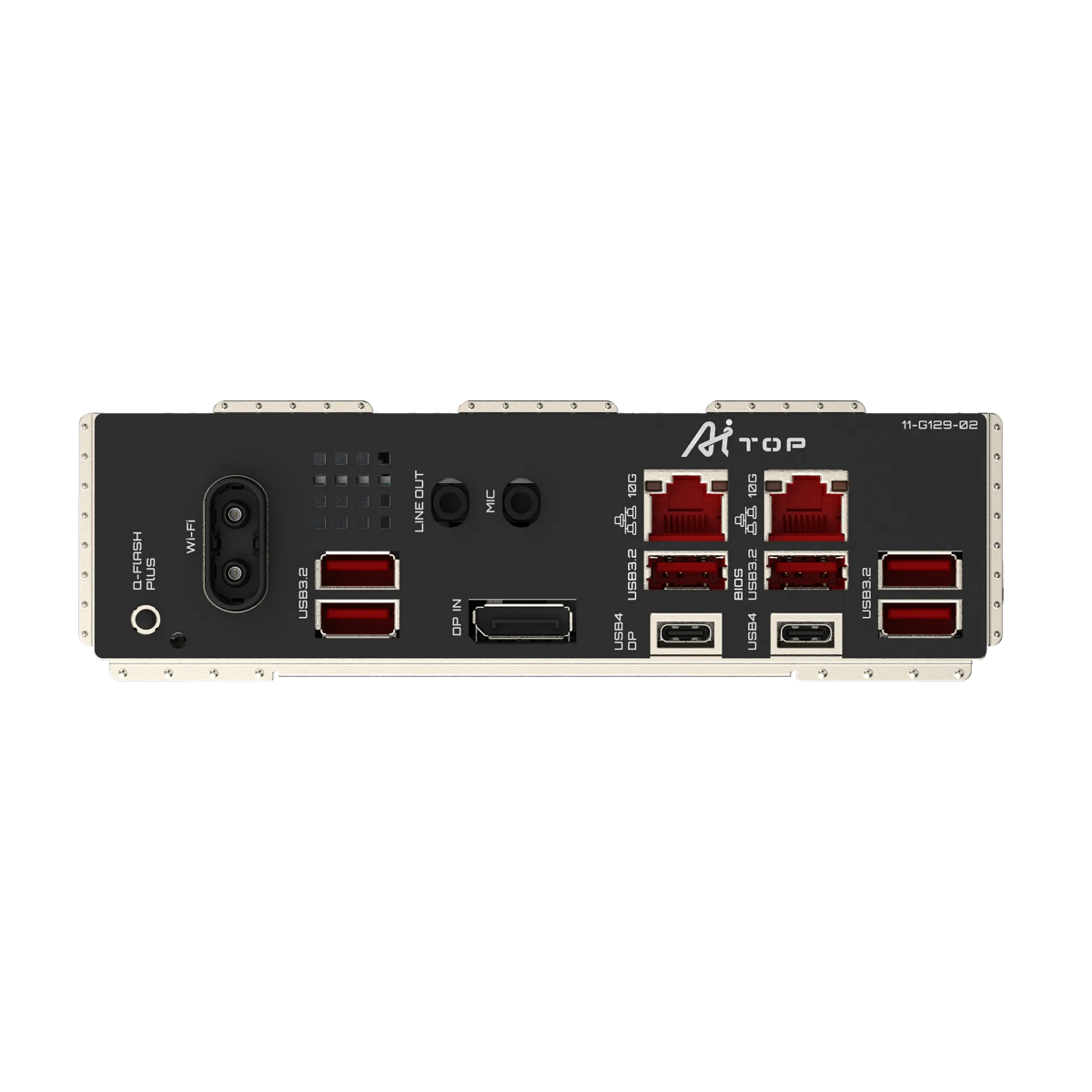

Ligzdas aizmugurējā panelī: 2 x audio jacks, 6 x USB 3.2 Gen2, 2 x USB 4 Type-C, DisplayPort, 2 x RJ-45
Formfaktors: E-ATX

Pilnas specifikācijas

941,⁹⁰ €

Ir noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

TRX50 AI TOP

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD TRX50

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x audio jacks, 6 x USB 3.2 Gen2, 2 x USB 4 Type-C, DisplayPort, 2 x RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC4080

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

3 x PCI-E 5.0 x16, PCI-E 4.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x4/x2 SSD 1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 7000 Processors.

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU: - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 5.0 x16 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.) 1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU: - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x16 mode

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2 x 10 Gigabit Ethernet (10000 Mb/c), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

QCNCM865

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

2 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Formfaktors ........................................................................................................................................................................................................

E-ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
