- Pamatplate MSI B760 PRO B760-P II Black (7E29-002R)

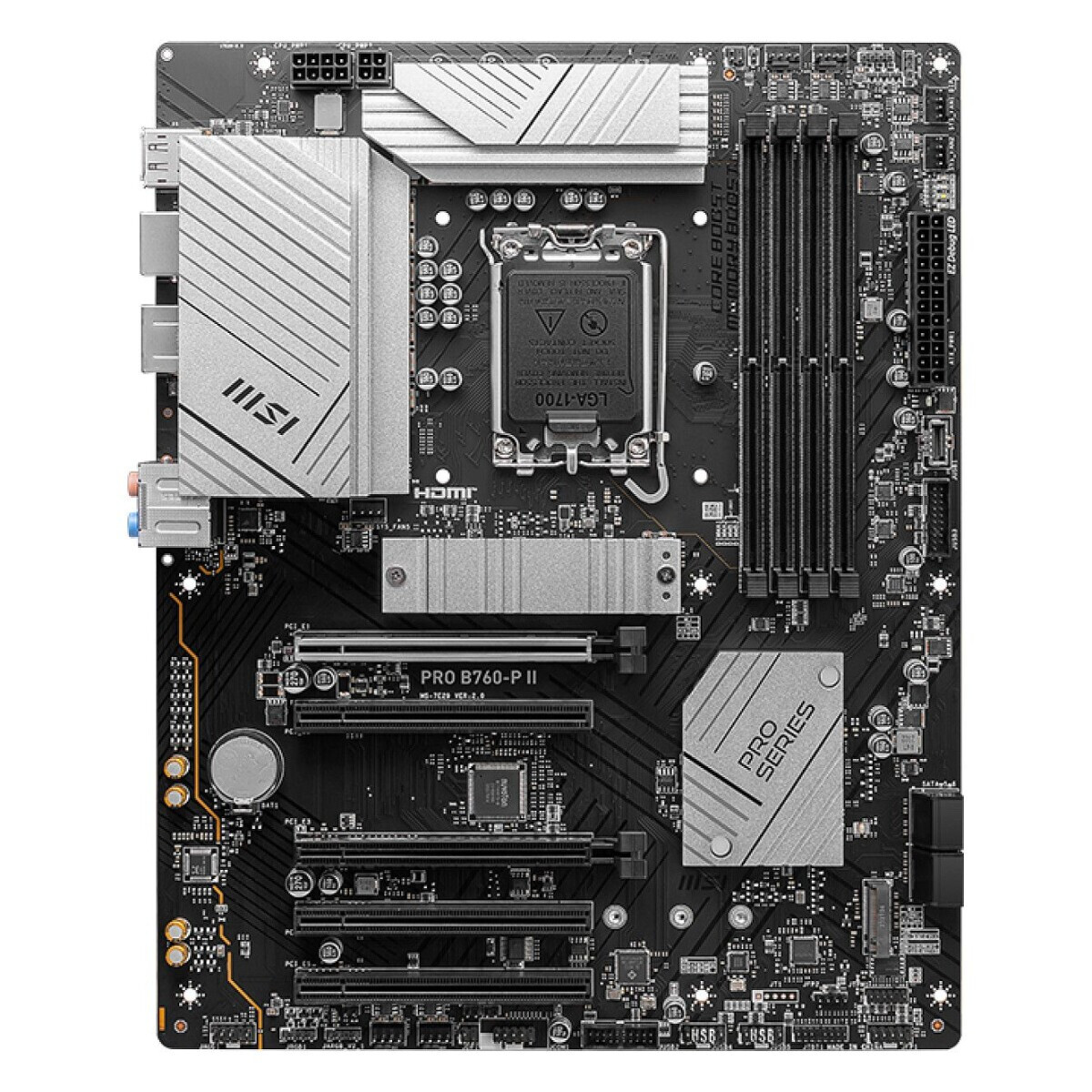

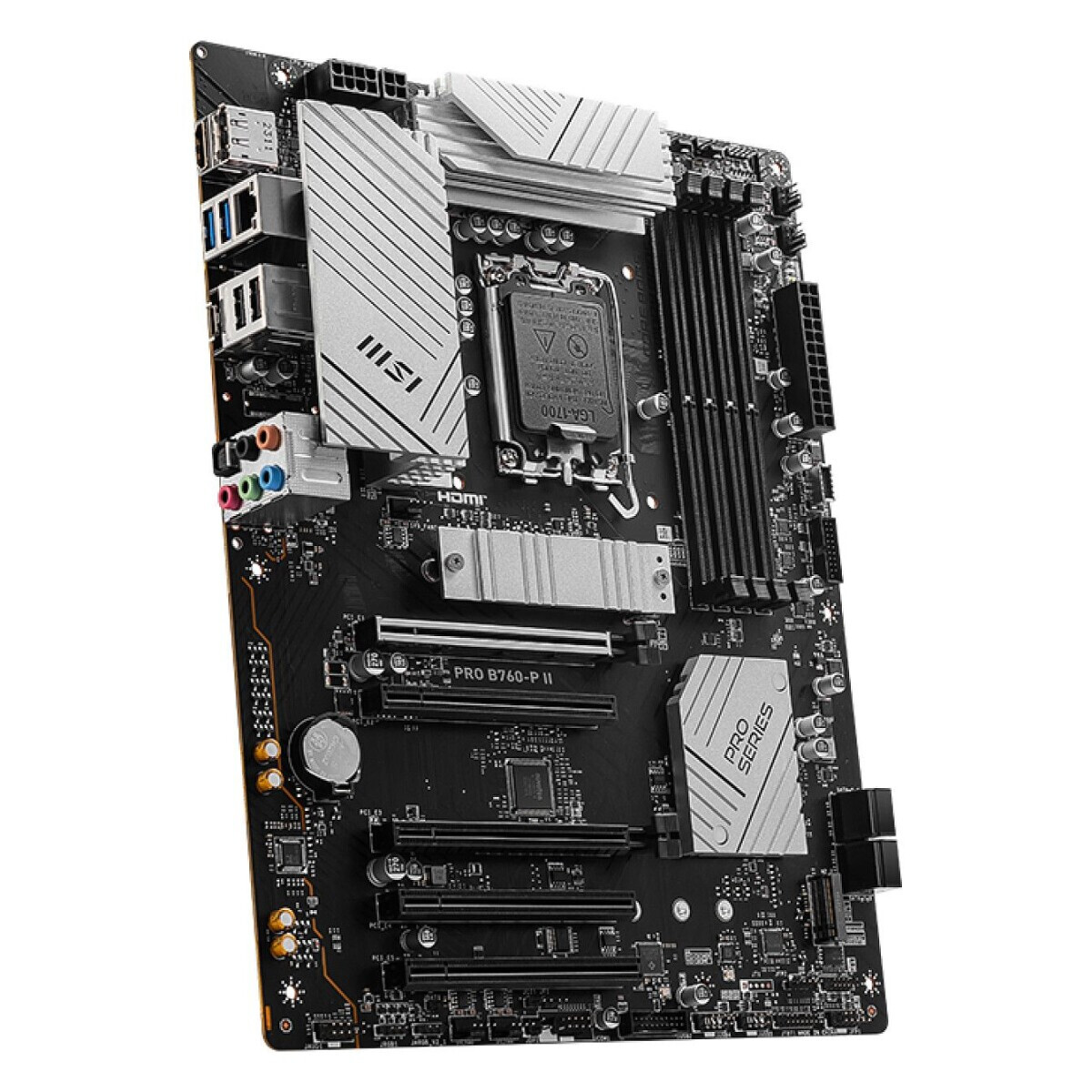

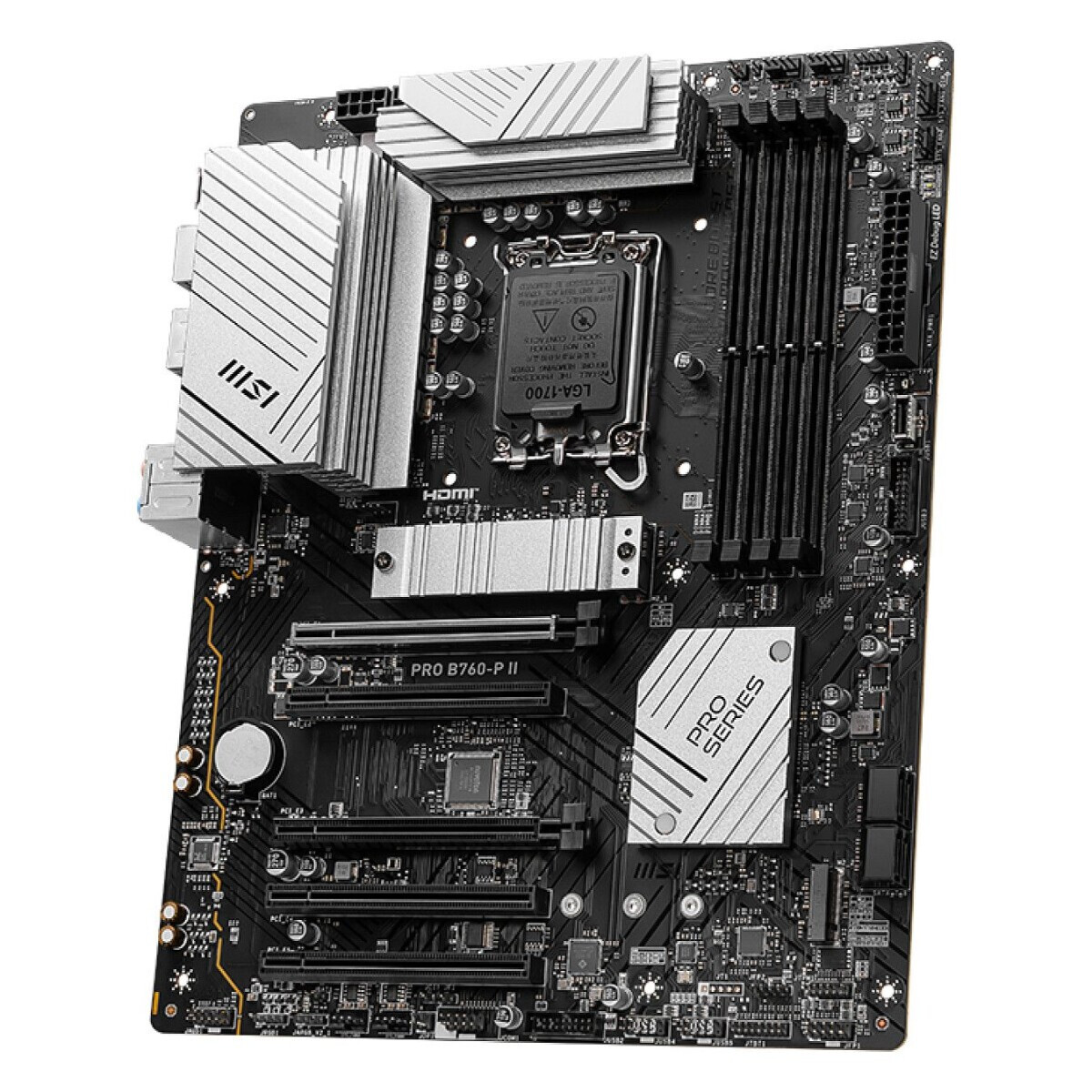

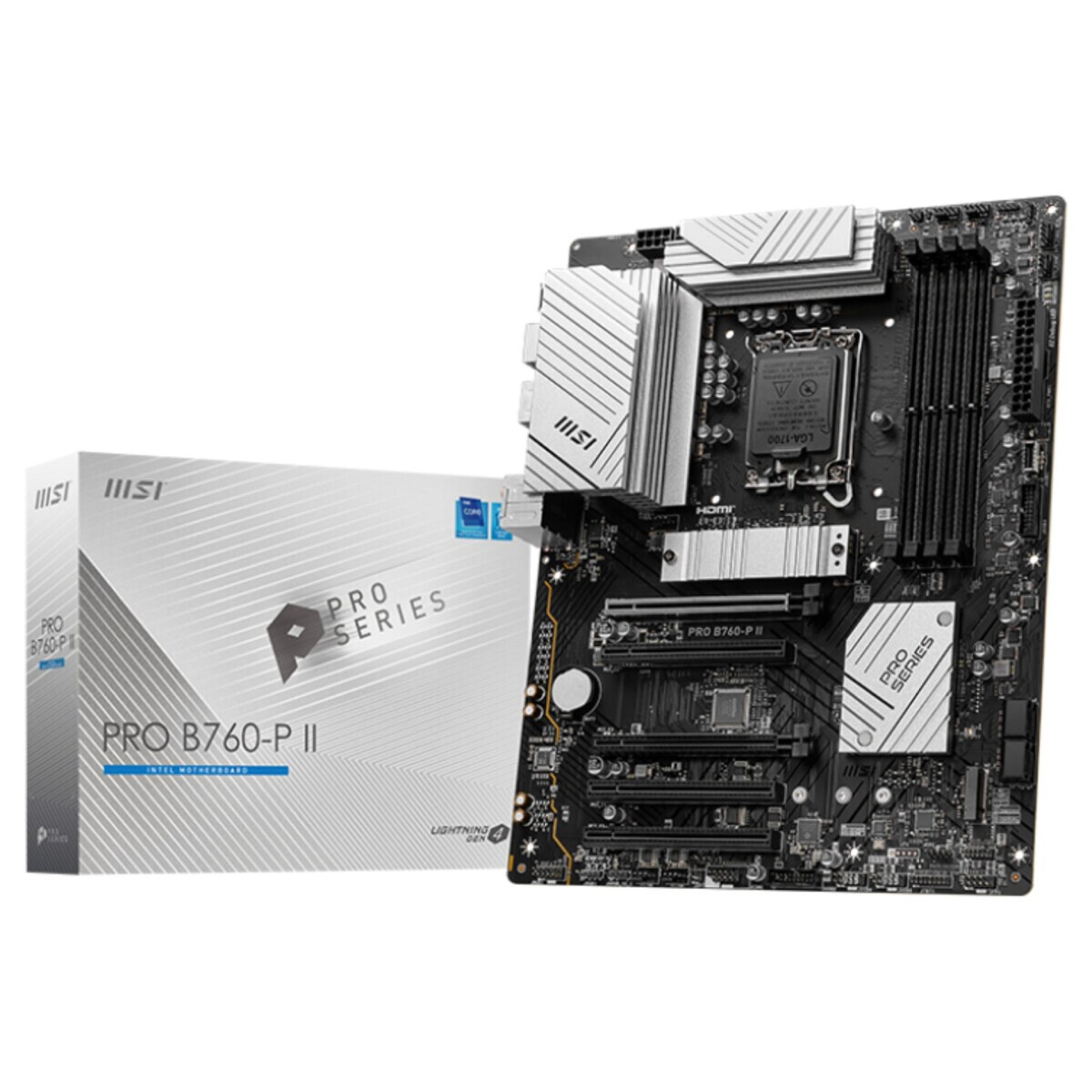

Pamatplate MSI B760 PRO B760-P II Black (7E29-002R)
ID: 41588
Īsi par preci
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel B760
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCIe 3.0 x1, PCIe 4.0x4, PCIe 4.0 x1, PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
- Ligzdas aizmugurējā panelī: USB 2.0, USB Type-C, USB 3.0, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Formfaktors: ATX
Pilnas specifikācijas
135,10 €135,10 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
7E29-002R
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B760
Saskarnes

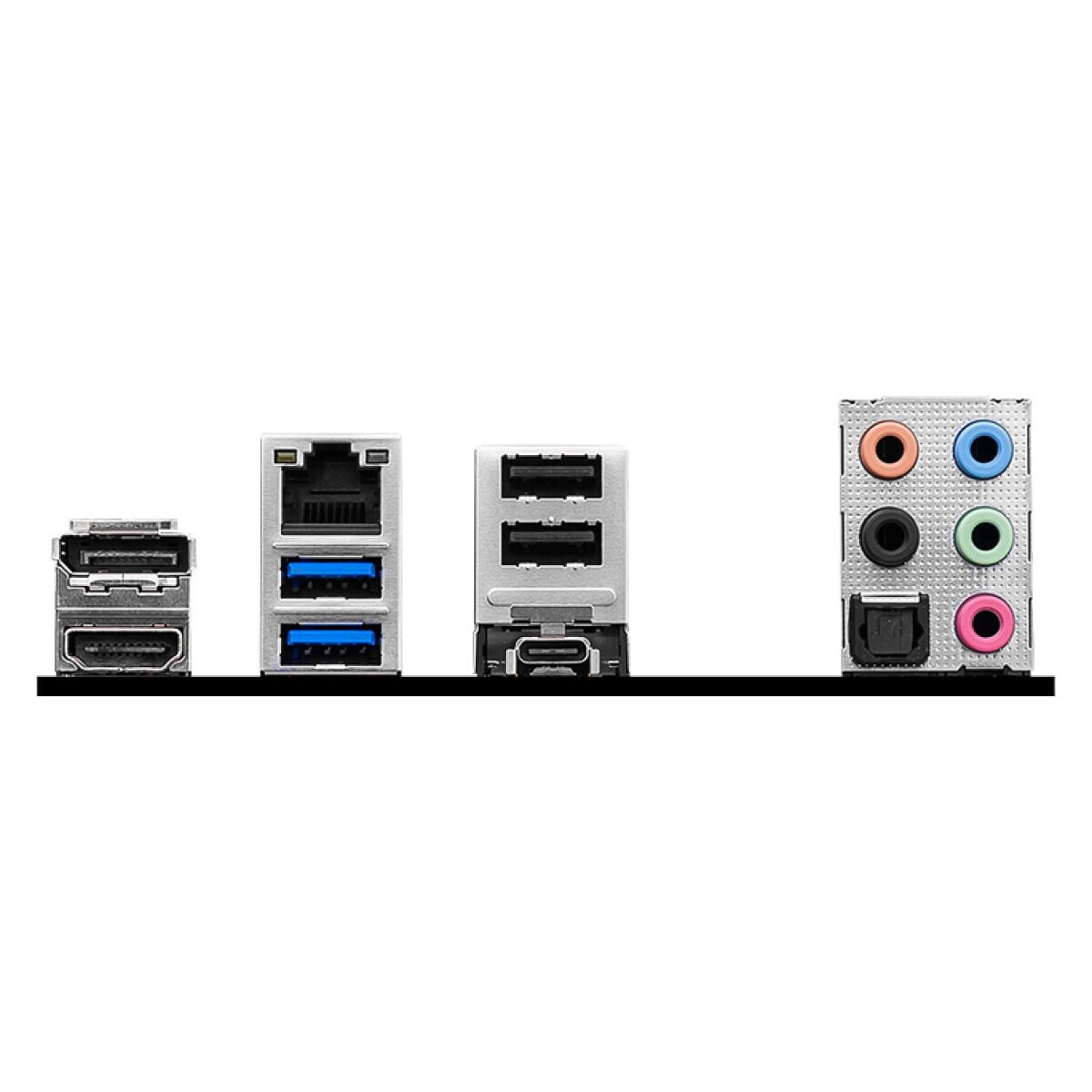

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 2.0, USB Type-C, USB 3.0, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCIe 3.0 x1, PCIe 4.0x4, PCIe 4.0 x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
PCIe Gen4 NVMe M.2
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
PCIe 4.0 x16
PCIe 4.0 x4
PCIe 3.0 x1
PCIe 4.0 x4 NVMe
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek RTL8125BG
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
