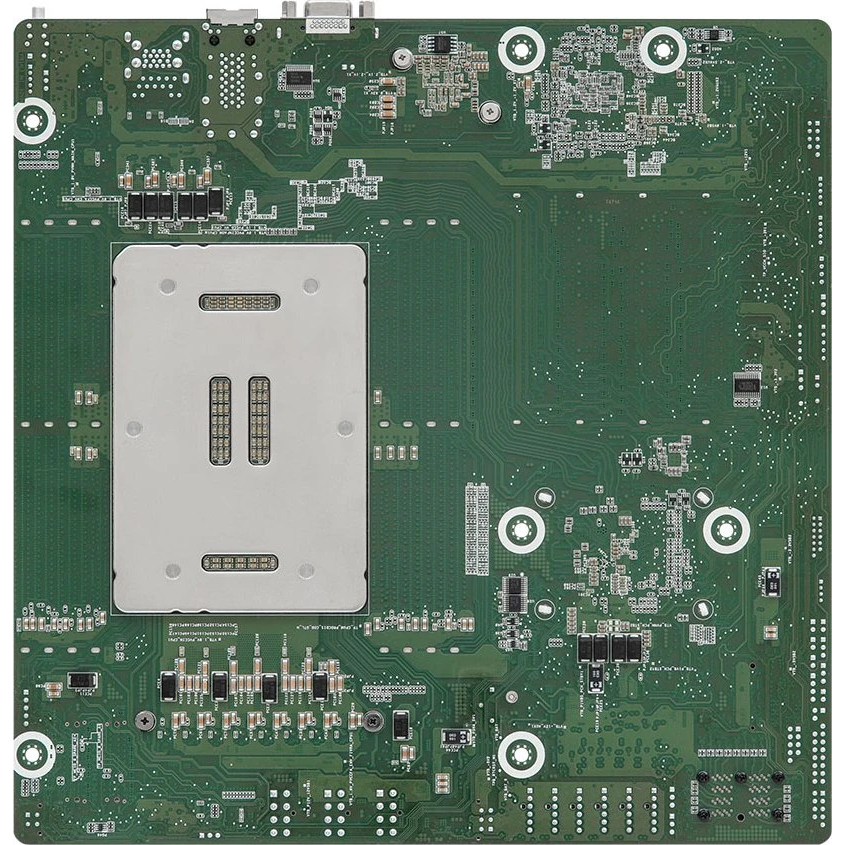

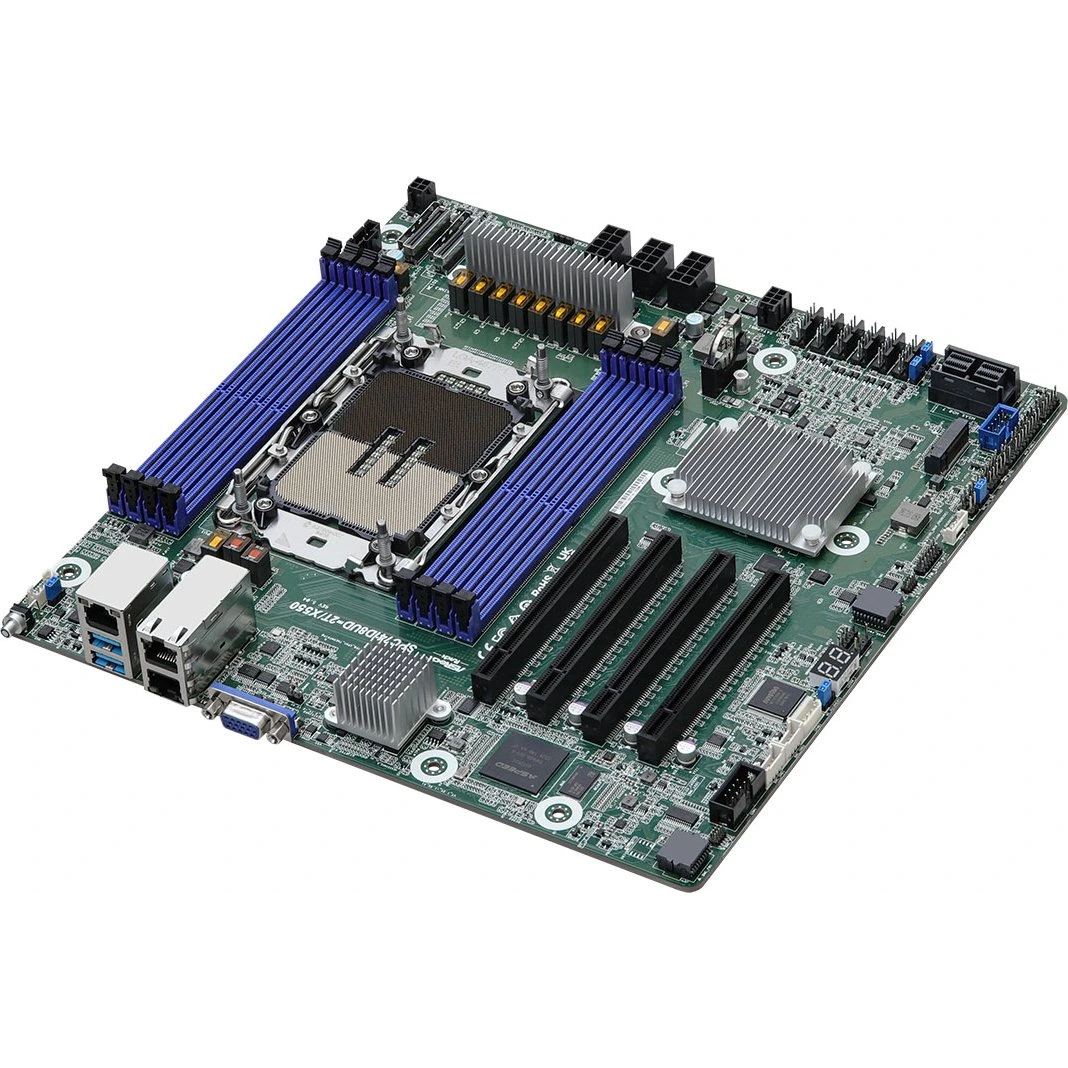

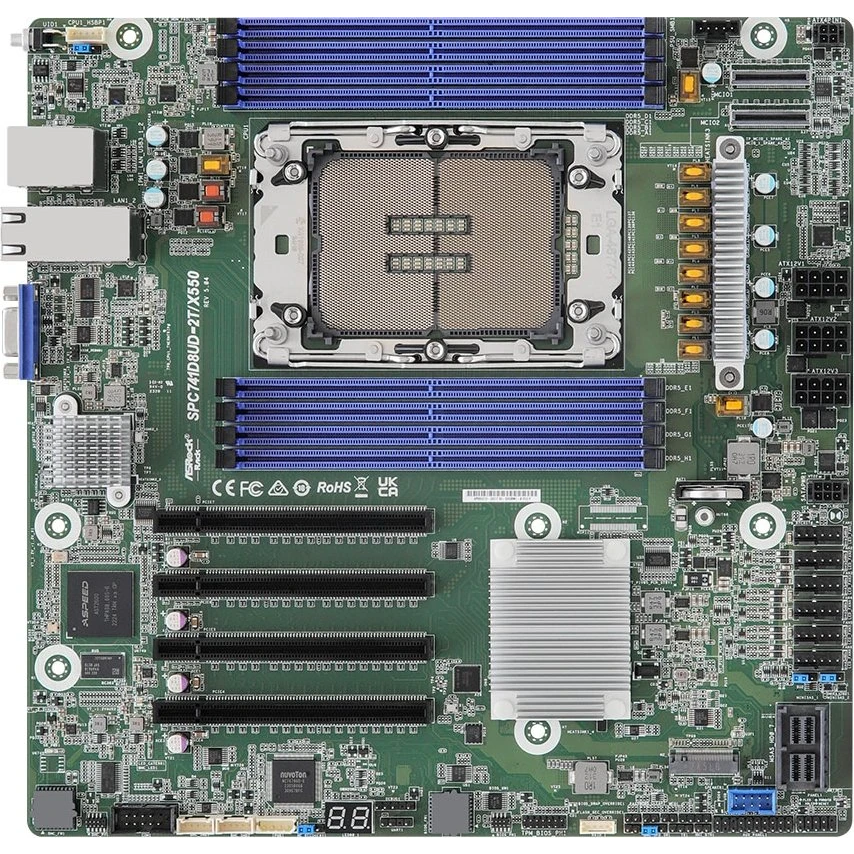

Pamatplate ASRock SPC741D8UD-2T/X550

ID: 44820

Īsi par preci

Socket: LGA 4677
Mikroshēmu kopa (Chipset): Intel C741
Atmiņas slotu skaits: 8
Atmiņas veids: DDR5
Paplašināšanas sloti: 4 x PCI-E 5.0 x16, 2 x PCI-E 5.0 x8, PCI-E M.2
Grafiskā mikroshēmas kopa: Aspeed AST2600
Tīkla saskarne: 10 Gigabit Ethernet (10000 Mb/c)

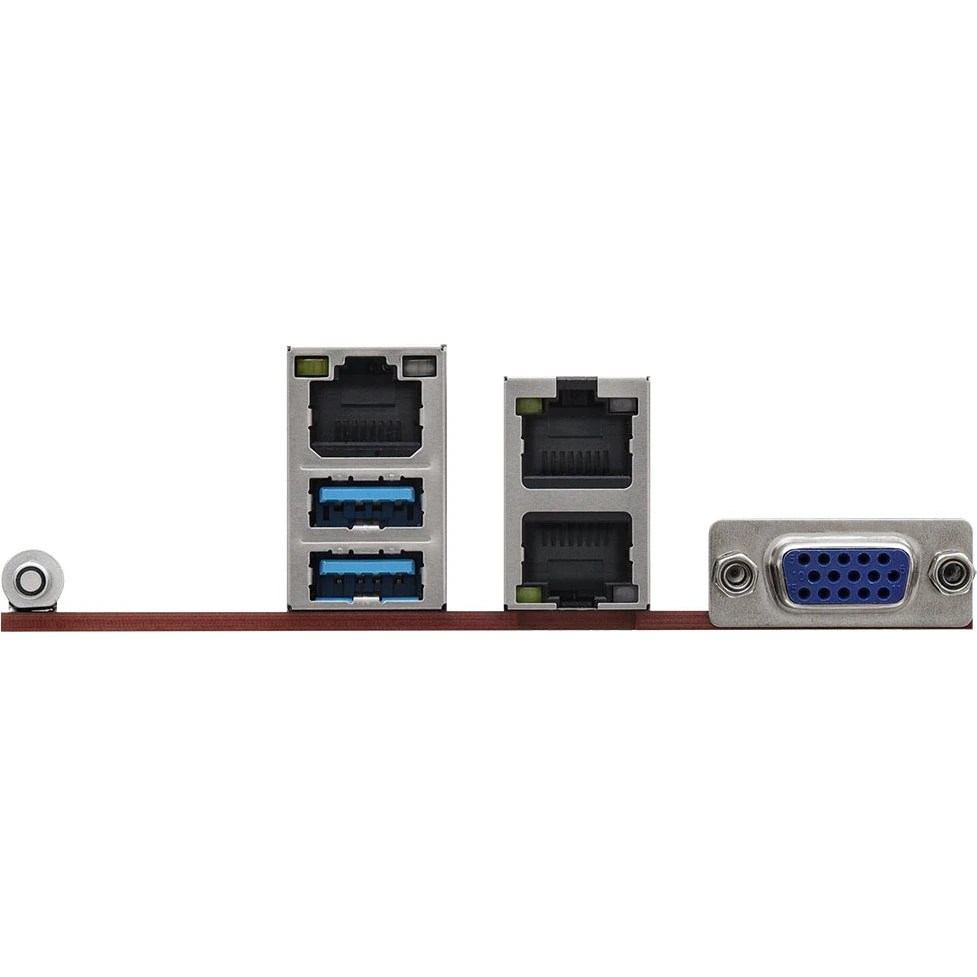

Ligzdas aizmugurējā panelī: 2 x USB 3.0, VGA, 3 x RJ-45
Formfaktors: Deep Micro-ATX

Pilnas specifikācijas

870,³⁰ €

Ir noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

SPC741D8UD-2T/X550

Socket ........................................................................................................................................................................................................

LGA 4677

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel C741

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 3.0, VGA, 3 x RJ-45

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

10 Gigabit Ethernet (10000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel X550-AT2

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

3 x 8-pin, 4-pin, 6-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0

Papildu informācija ........................................................................................................................................................................................................

2x MCIO SFF-TA-1016 8i (PCIe 5.0 x8), 2x Mini SAS HD SFF-8643 (SATA), 8x SATA 6Gb/s (via Mini SAS HD SFF-8643) RAM data rate DDR5-4400/DDR5-4800/DDR5-5200/DDR5-5600 (Xeon Scalable 4th Gen (Emerald Rapids-SP)), DDR5-4000/DDR5-4400/DDR5-4800 (Xeon Scalable 5th Gen (Sapphire Rapids-SP)), DDR5-4400 (Xeon Scalable 5th Gen (Sapphire Rapids-EE)) ECC support Yes, chipset with ECC validation, ECC-validated platform via Xeon Scalable 4th Gen (Emerald Rapids-SP)/Xeon Scalable 5th Gen (Sapphire Rapids-SP)/Xeon Scalable 5th Gen (Sapphire Rapids-EE) Remote maintenance BMC (Aspeed AST2600), IPMI, management port Internal connections - other 1x serial header, 1x TPM header, 1x VROC header, 1x speaker header, 1x chassis intrusion header, 1x IPMB header, 1x SMBus header, 1x PMBus header, 1x NMI header Hardware Monitor Temperature CPU, PCH, MB, Card side Temperature Sensing Fan Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control Voltage 1.05V_PCH, 1.8V_PCH, +BAT, PV

Formfaktors ........................................................................................................................................................................................................

Deep Micro-ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

zaļš

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

4 x PCI-E 5.0 x16, 2 x PCI-E 5.0 x8, PCI-E M.2

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā

Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................

Aspeed AST2600

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildus

Izmēri (PxAxD) ........................................................................................................................................................................................................

264 x 267 x 36 mm

Svars ........................................................................................................................................................................................................

0.9 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
