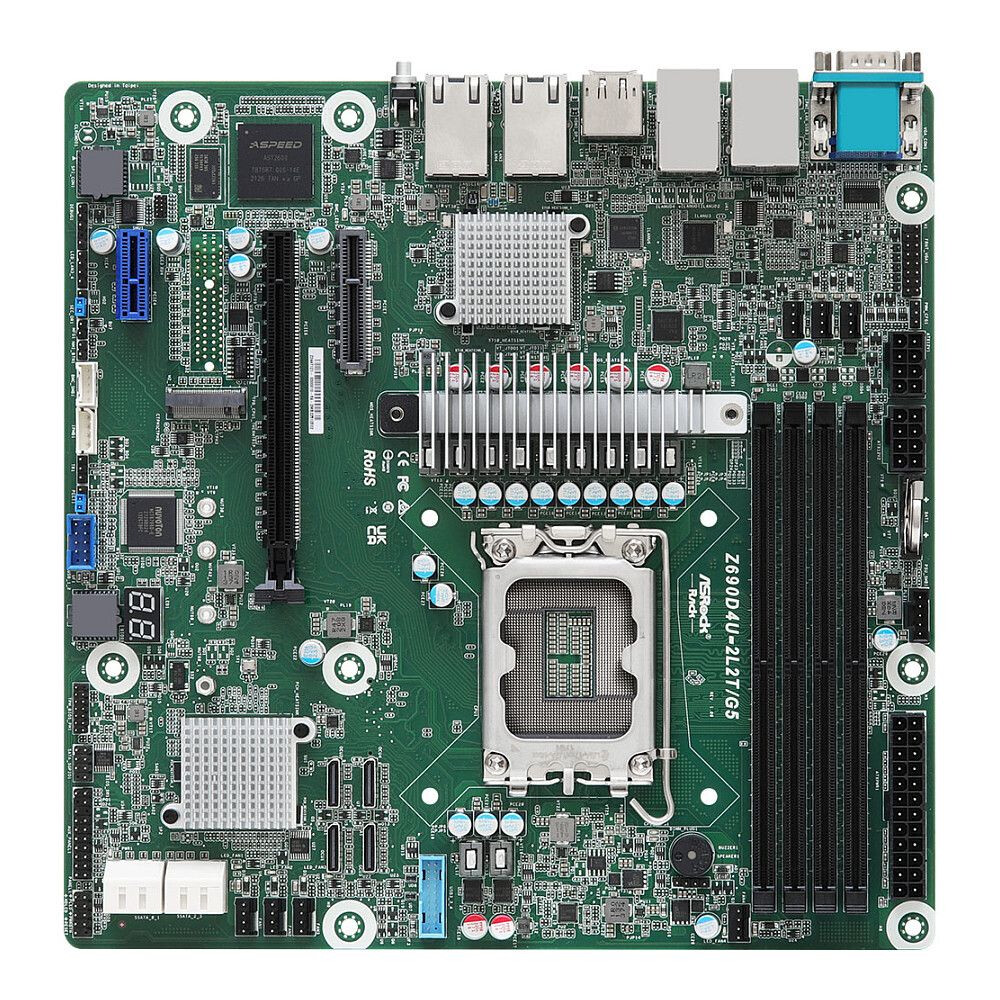

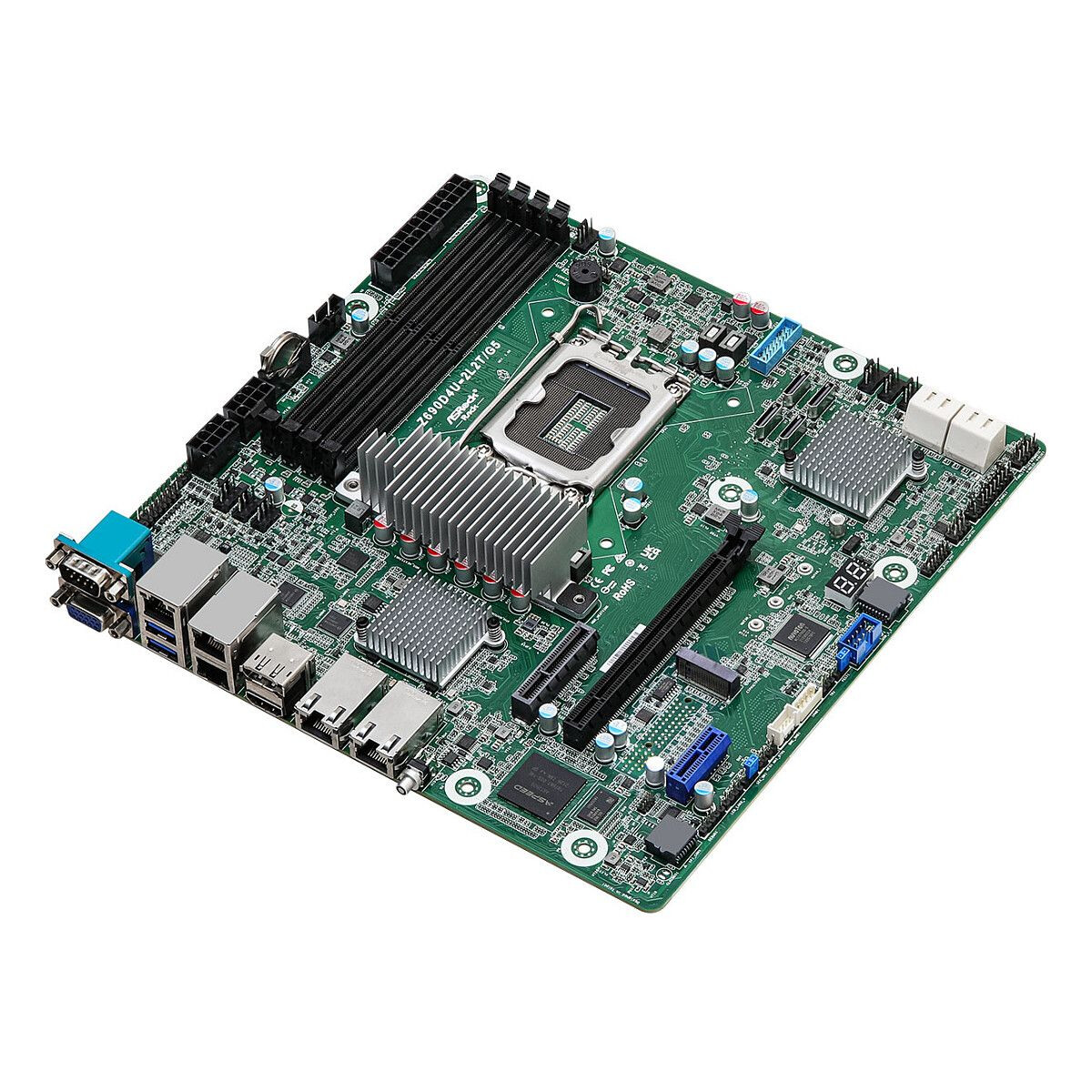

Pamatplate ASRock Z690 Z690D4U-2L2T/G5 Green

ID: 44843

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 3.0 x1, PCIe 4.0x4
Grafiskā mikroshēmas kopa: Aspeed AST2600
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c), 10 Gigabit Ethernet (10000 Mb/c)

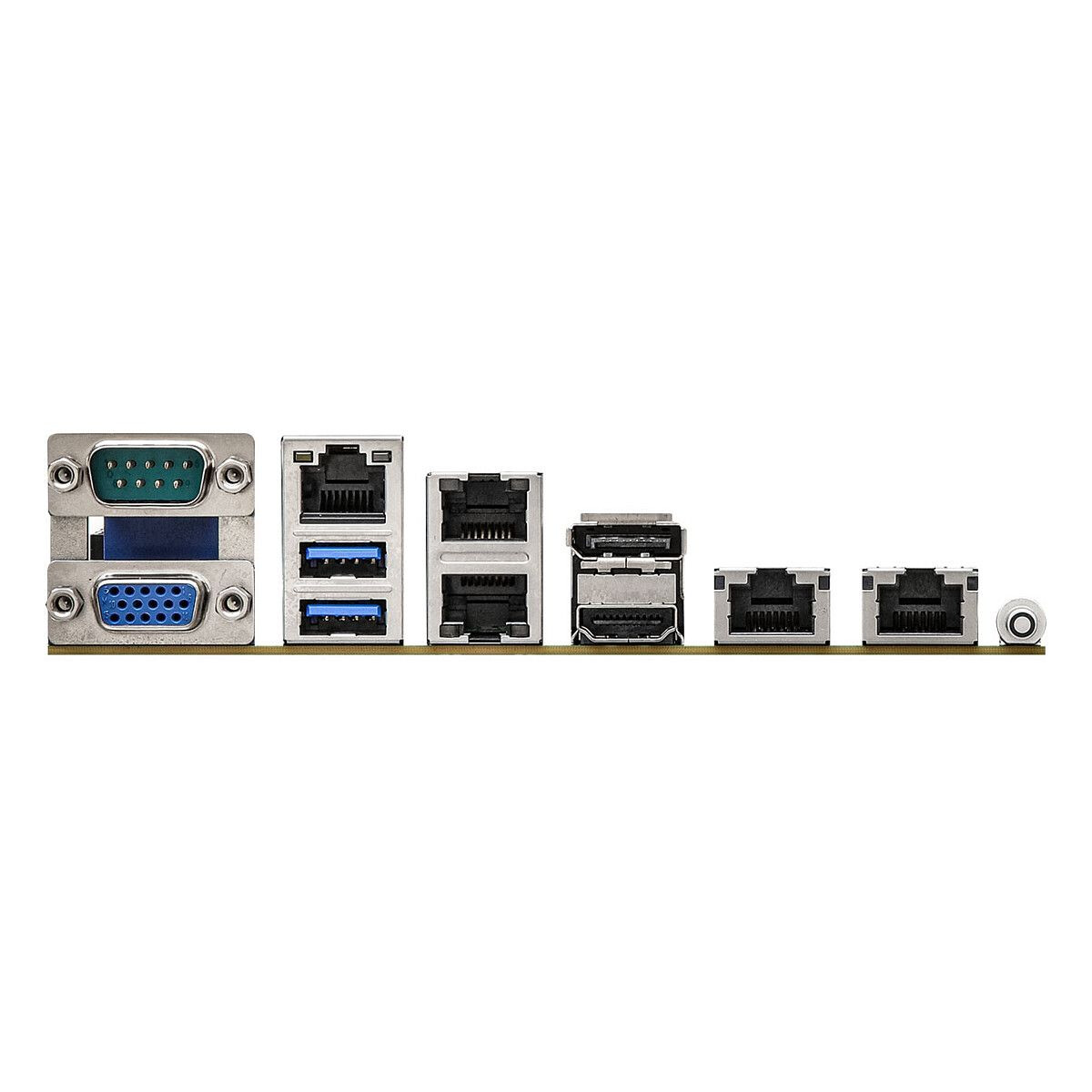

Ligzdas aizmugurējā panelī: 2 x USB 3.2 Gen1, VGA, HDMI, DisplayPort, 5 x RJ-45, COM

Pilnas specifikācijas

890,³⁰ €

Ir noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

Z690D4U-2L2T/G5

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c), 10 Gigabit Ethernet (10000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel I210AT

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCIe 3.0 x1, PCIe 4.0x4

M.2. slotu veids ........................................................................................................................................................................................................

2280/2260/2242/2230

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

7 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1

Papildu informācija ........................................................................................................................................................................................................

network Intel X710-AT2 (10Gb/s) x2, Intel I210-AT (1Gb/s) x2 Internal connections - other 1x TPM header, 1x speaker header, 1x chassis intrusion header, 1x BMC header, 1x IPMB header, 1x VGA header, 1x SMBus header, 1x PMBus header, 1x NMI header, 1x SGPIO

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

zaļš

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, VGA, HDMI, DisplayPort, 5 x RJ-45, COM

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā

Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................

Aspeed AST2600

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildus

Izmēri (PxAxD) ........................................................................................................................................................................................................

244 x 244 x 36 mm

Svars ........................................................................................................................................................................................................

1 kg

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
