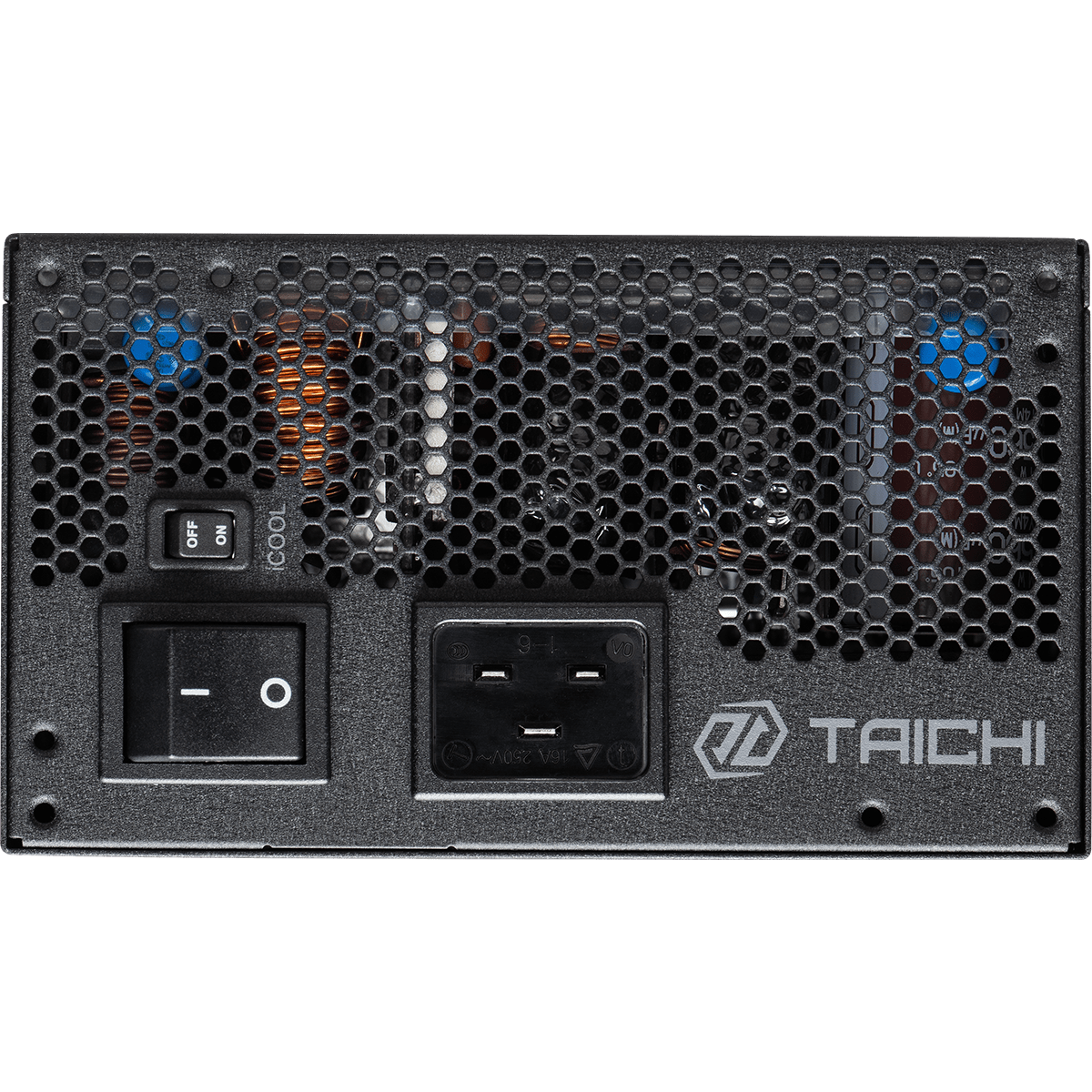

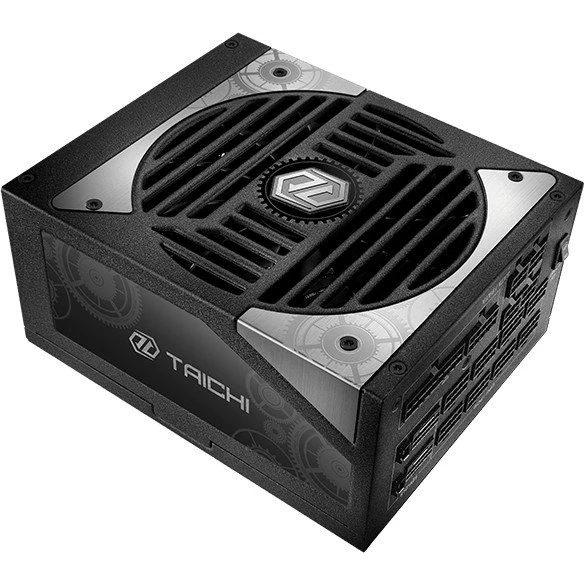

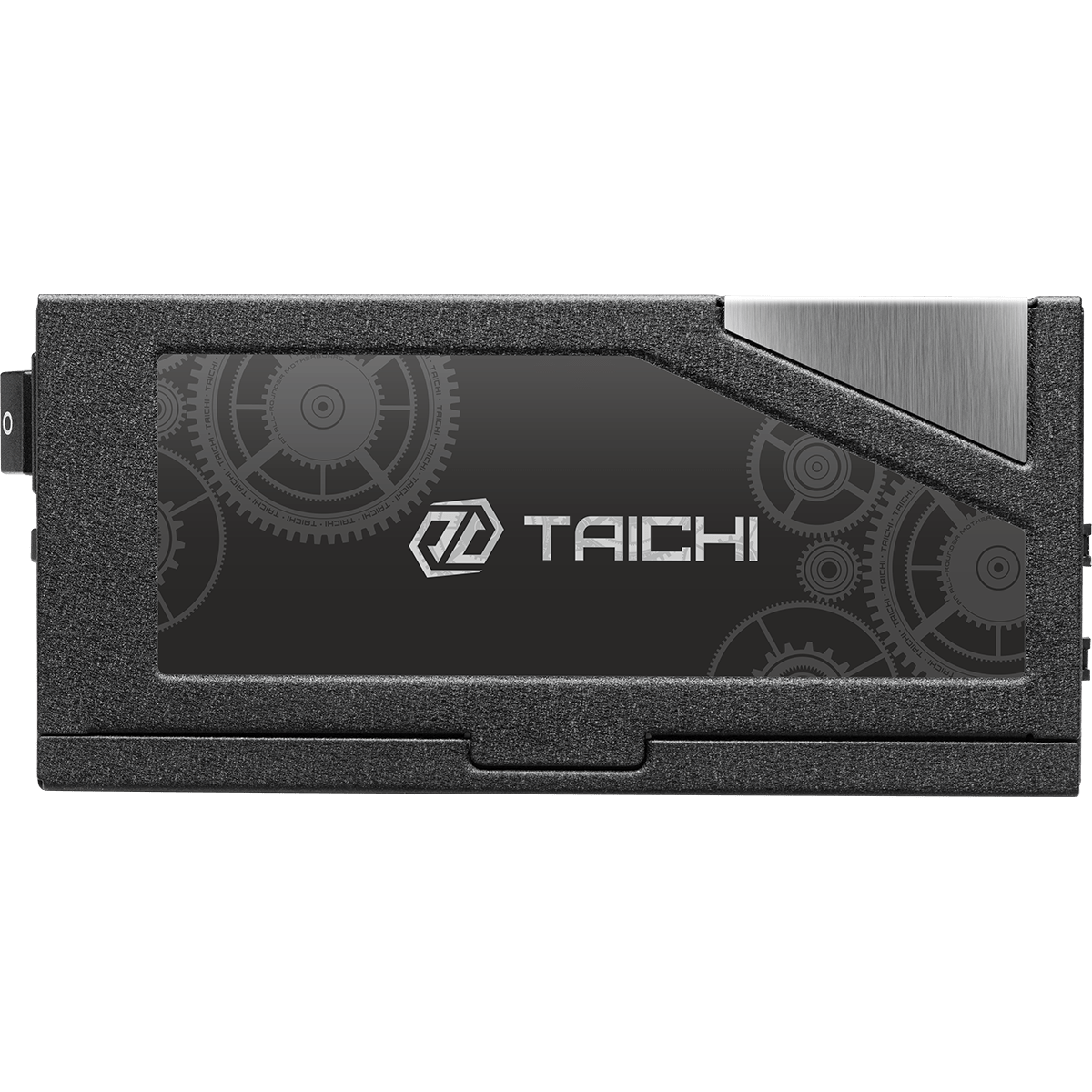

- Barošanas bloks ASRock Taichi TC-1300T 1300W Black (90-UXT130-TFEAAB)
Barošanas bloks ASRock Taichi TC-1300T 1300W Black (90-UXT130-TFEAAB)
ID: 44968
Īsi par preci
- Jauda: 1300 W
- Standarts: ATX12V 3.1
- PFC: aktīvs
- Ventilatora izmērs: 135 mm
- Sertifikāts 80 PLUS: Titanium
- Noņemami kabeļi: Jā
Pilnas specifikācijas
313,30 €313,30 €
Ir noliktavāBasic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90-UXT130-TFEAAB
Jauda ........................................................................................................................................................................................................
1300 W
Standarts ........................................................................................................................................................................................................
ATX12V 3.1
PFC ........................................................................................................................................................................................................
aktīvs

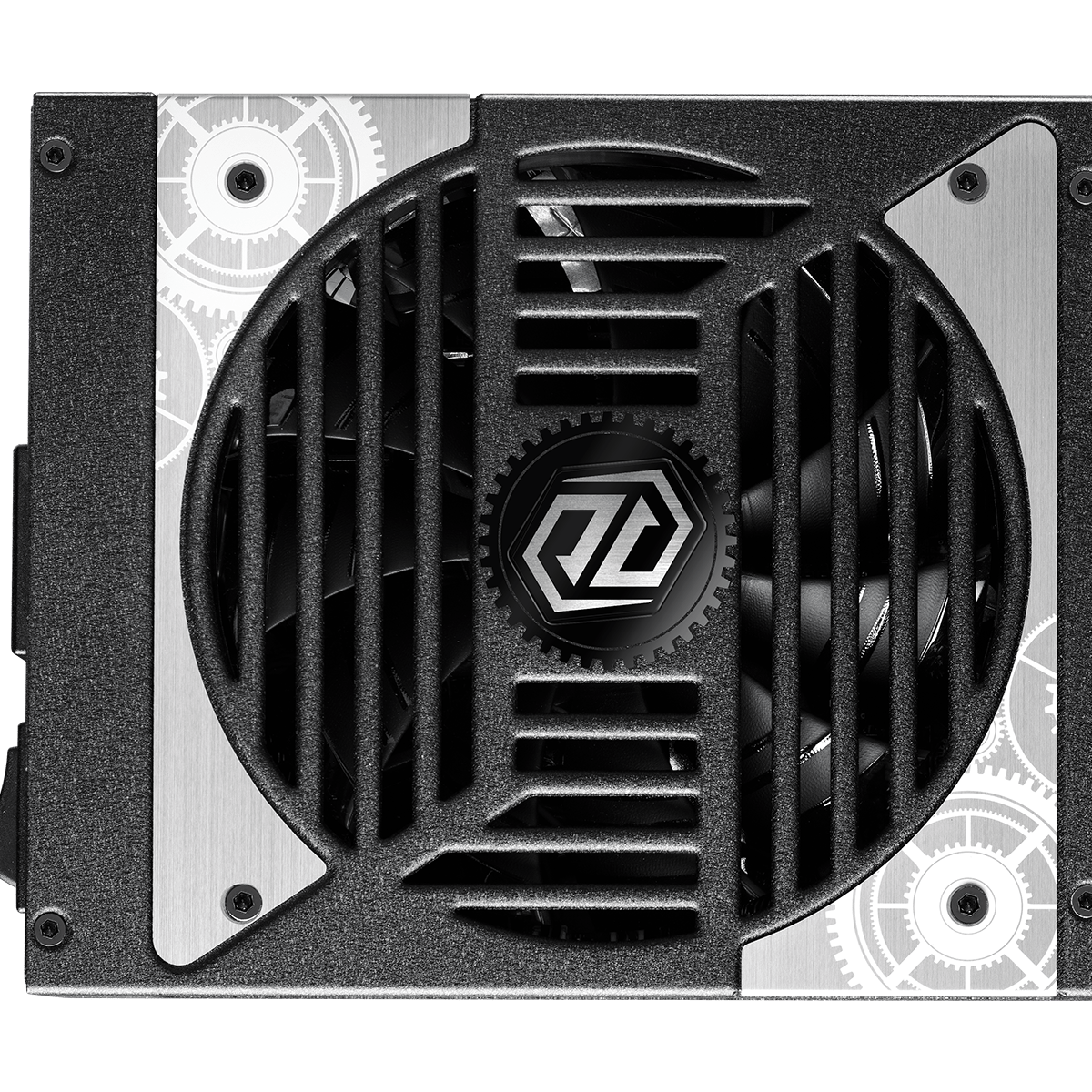

Ventilatora izmērs ........................................................................................................................................................................................................
135 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
25 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
25 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
108.3 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A

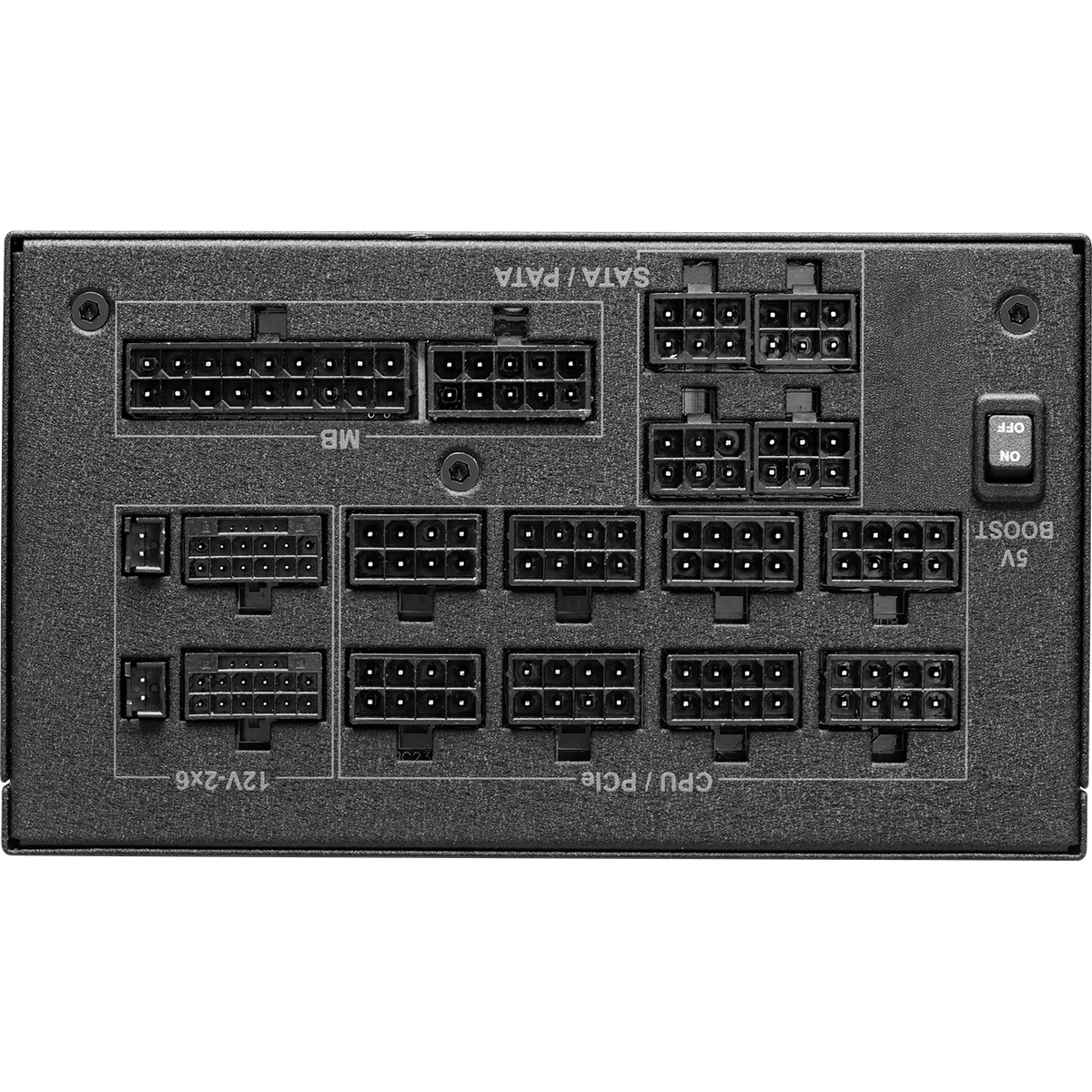

Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
2
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
8
12+4-pin PCI-E 5.0 (12VHPWR) ligzdu skaits ........................................................................................................................................................................................................
2
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
3
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
9
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Titanium
Sertifikāts LAMBDA ........................................................................................................................................................................................................
A++
Noņemami kabeļi ........................................................................................................................................................................................................
jā
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
60 cm
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 180 x 86 mm
Svars ........................................................................................................................................................................................................
3.4 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
