- Pamatplate MSI MAG B850 Gaming Plus MAX WIFI White (7E56-030R)

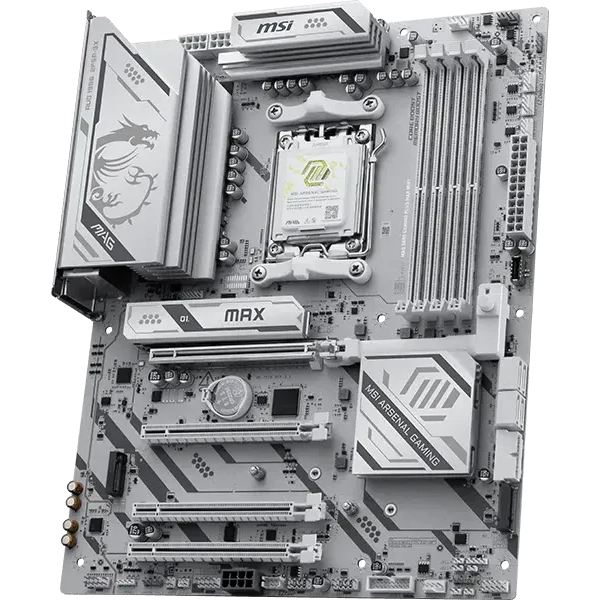

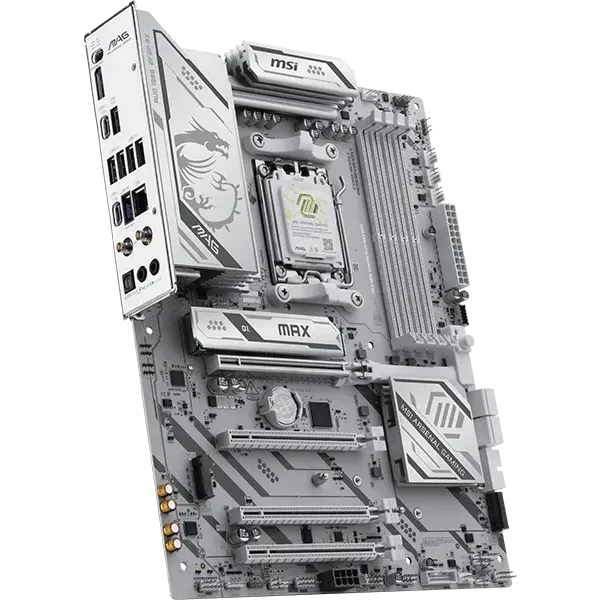

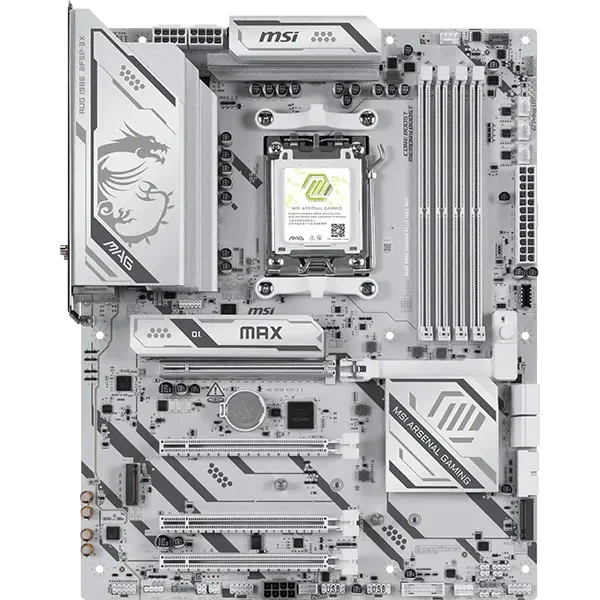

Pamatplate MSI MAG B850 Gaming Plus MAX WIFI White (7E56-030R)
ID: 45305
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B850
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCIe 3.0 x1, PCIe 4.0x4, 4 x PCI-E M.2
- Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 8 x USB 2.0, 2 x audio jacks, 5 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C, DisplayPort, S/PDIF (optiskais)
- Formfaktors: ATX
Pilnas specifikācijas
215,90 €215,90 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
7E56-030R
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B850
Saskarnes

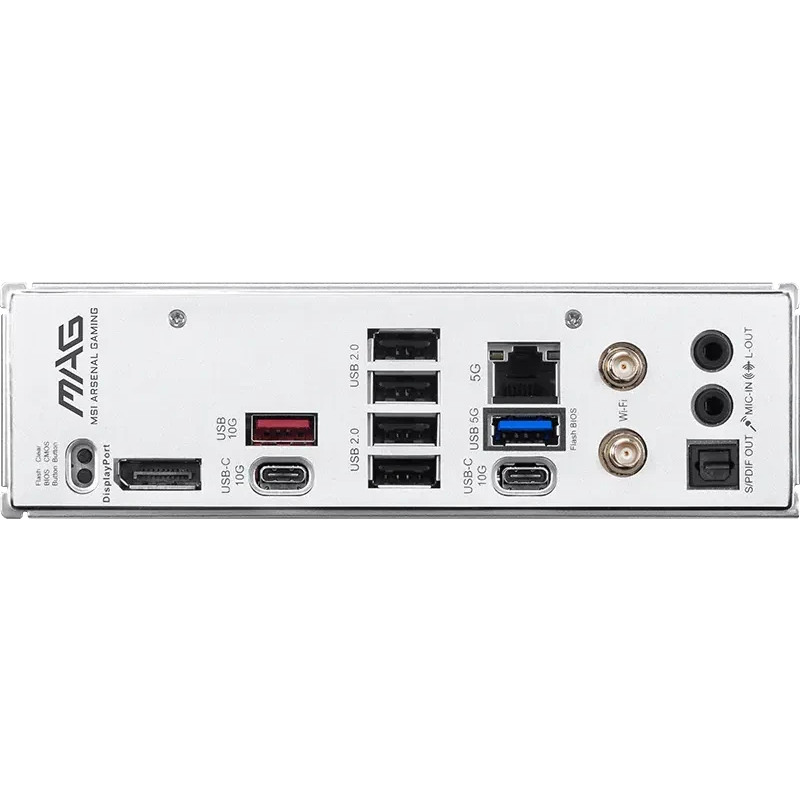

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
8 x USB 2.0, 2 x audio jacks, 5 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C, DisplayPort, S/PDIF (optiskais)
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
6 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3 x 3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek 8126VB 5G
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, 2 x PCIe 3.0 x1, PCIe 4.0x4, 4 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1x M.2/M-Key (PCIe 5.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x2, 2280/2260), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
244 x 305 x 36 mm
Svars ........................................................................................................................................................................................................
1.2 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
