- Pamatplate ASRock B850 B850M Challenger Black (90-MXBU30-A0UAYZ)

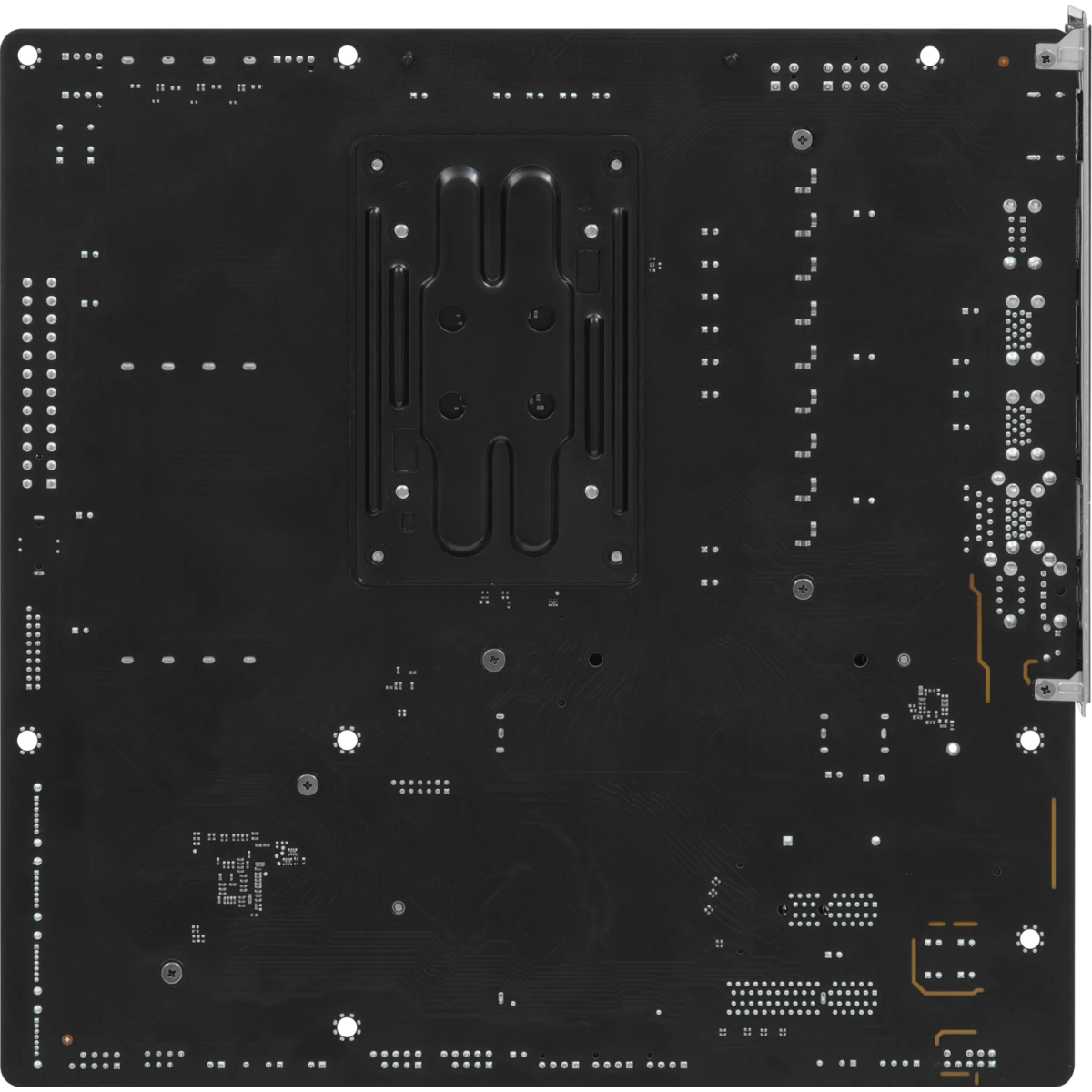

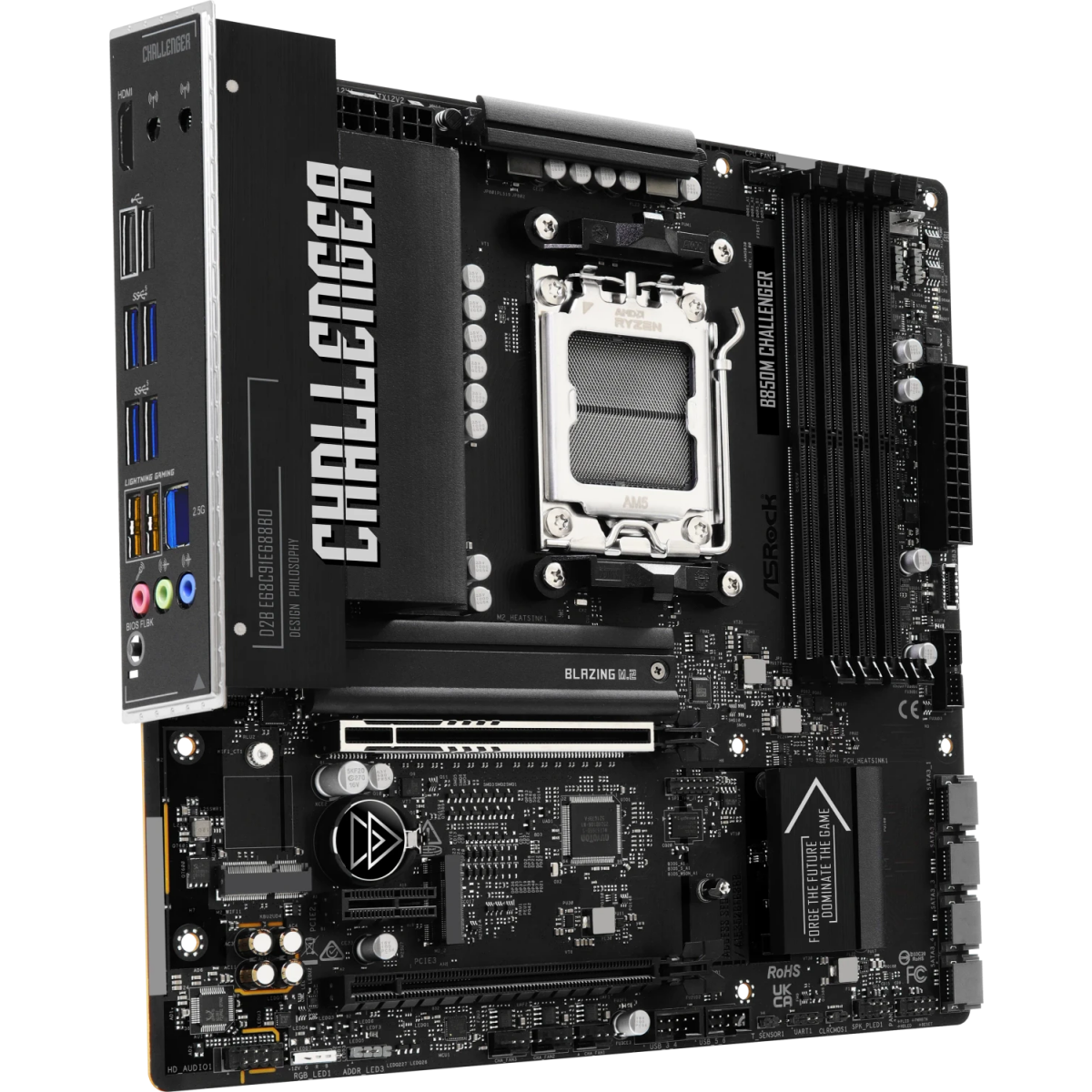

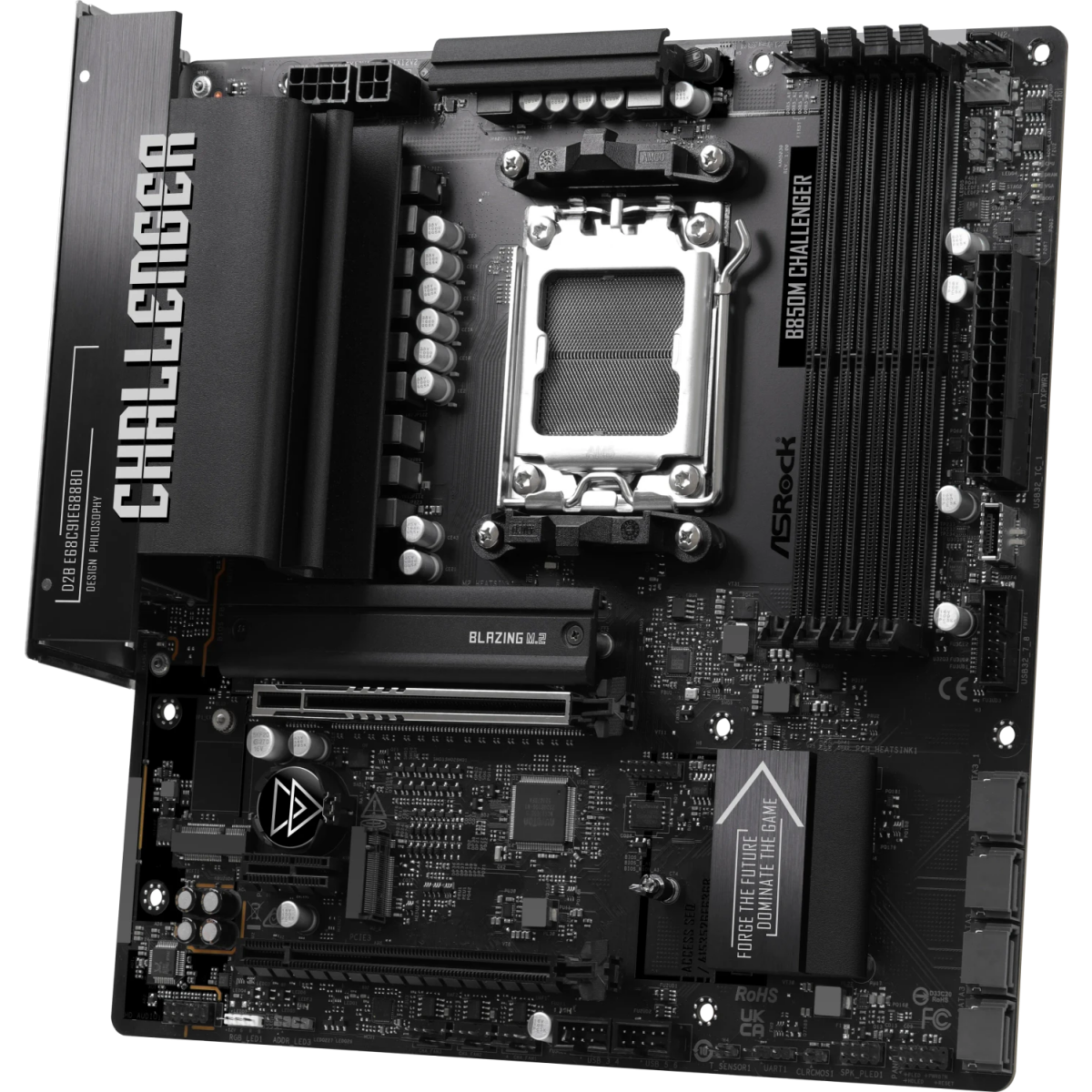

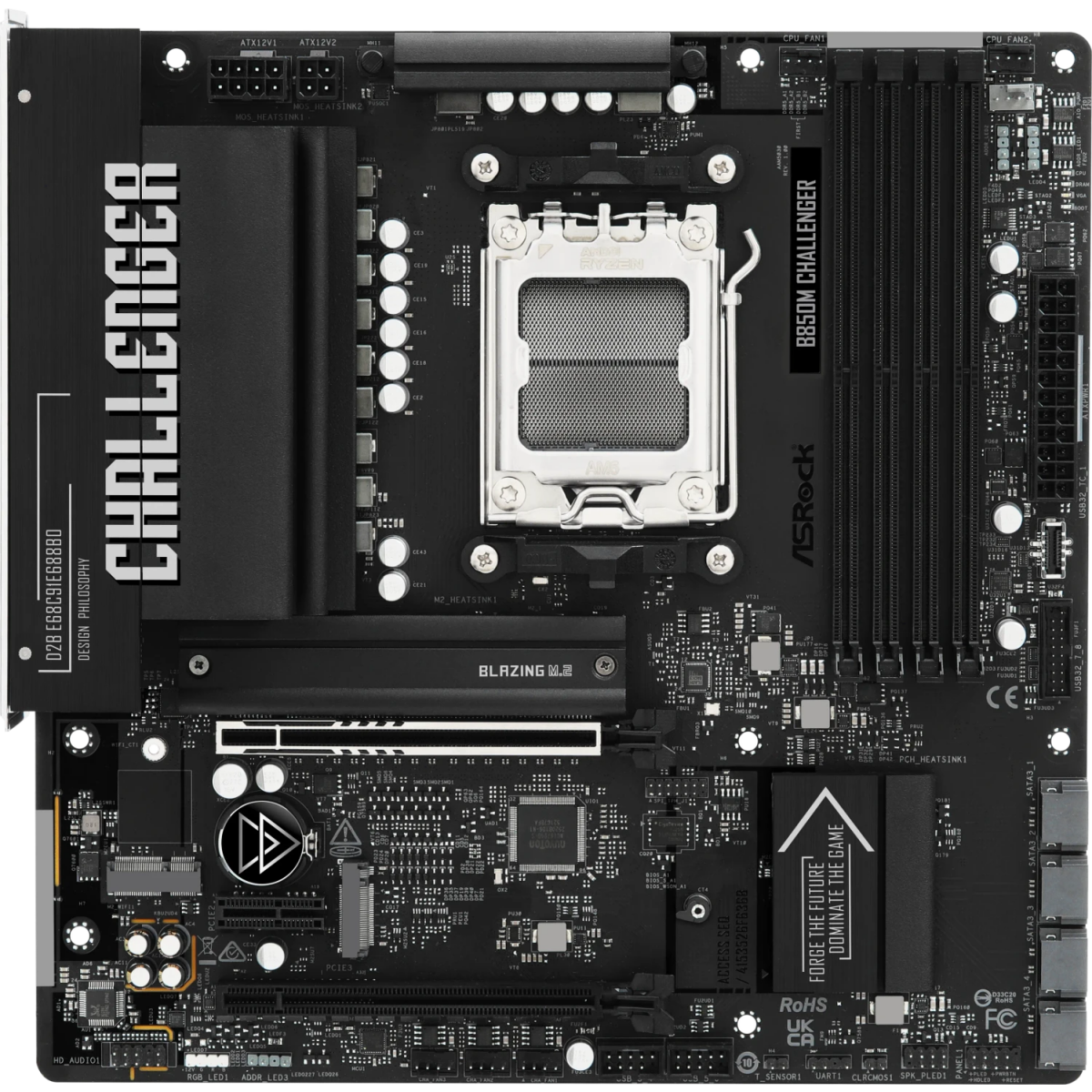

Pamatplate ASRock B850 B850M Challenger Black (90-MXBU30-A0UAYZ)
ID: 45748
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B850
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
- Ligzdas aizmugurējā panelī: 2 x USB 2.0, 3 x audio jacks, 6 x USB 3.2 Gen1, HDMI, RJ-45
- Formfaktors: mATX
Pilnas specifikācijas
123,80 €123,80 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90-MXBU30-A0UAYZ
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B850
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Tīkla kontrolieris ........................................................................................................................................................................................................
Dragon RTL8125BG
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
3-pin, 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
4-pin, 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Saskarnes

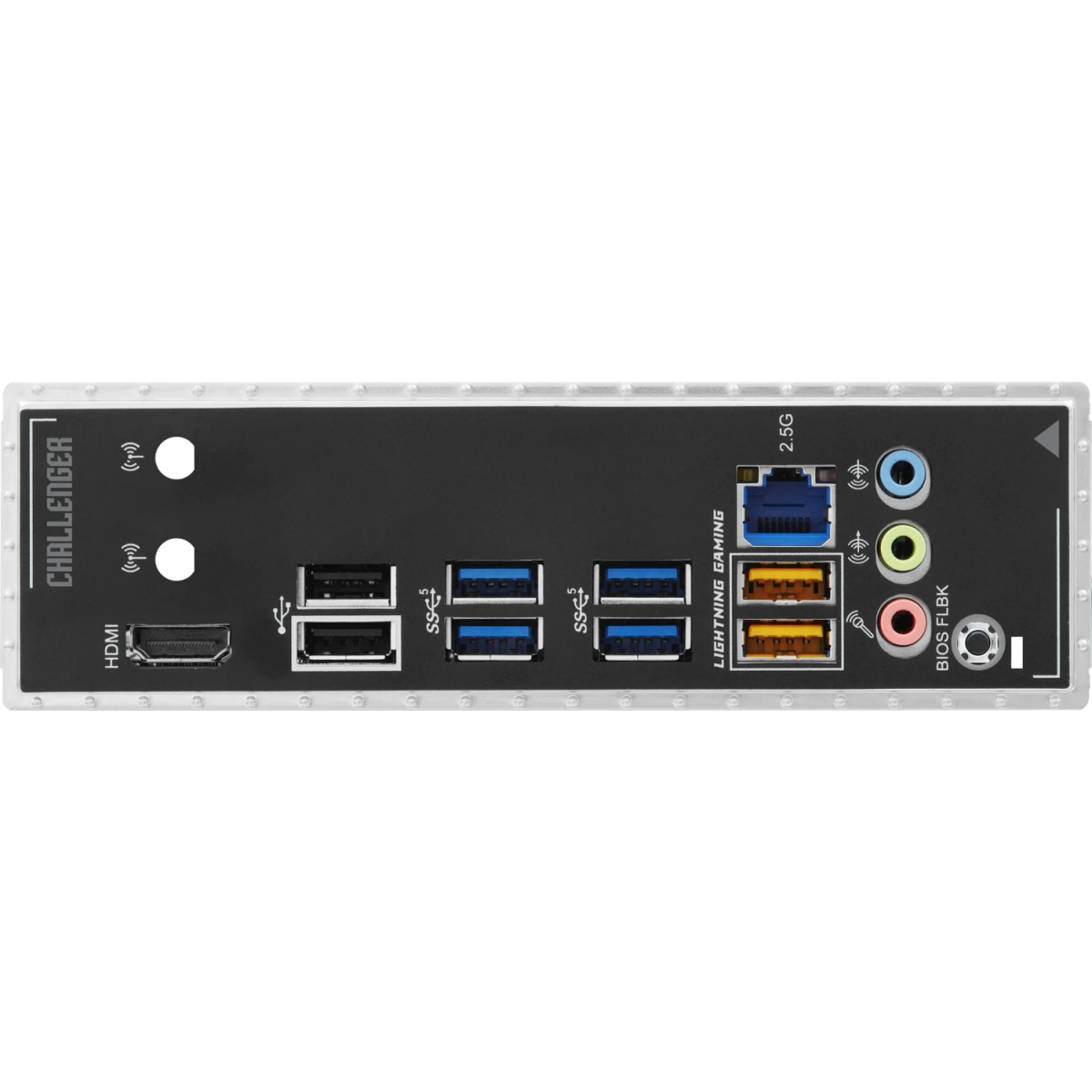

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB 2.0, 3 x audio jacks, 6 x USB 3.2 Gen1, HDMI, RJ-45
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCIe 4.0 x1, 3 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
2× M.2 Key M (NVMe, Gen5x4 + Gen4x4) + 1× M.2 Key E (Wi‑Fi)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
PCIe 5.0 ×16 (CPU), PCIe 4.0 ×4, PCIe 4.0 ×1, M.2 PCIe Gen5 ×4, M.2 PCIe Gen4 ×4
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
244 x 244 x 36 mm
Svars ........................................................................................................................................................................................................
0.6 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
