- Pamatplate ASRock B850 Rock WiFi7 Black (90-MXBU20-A0UAYZ)

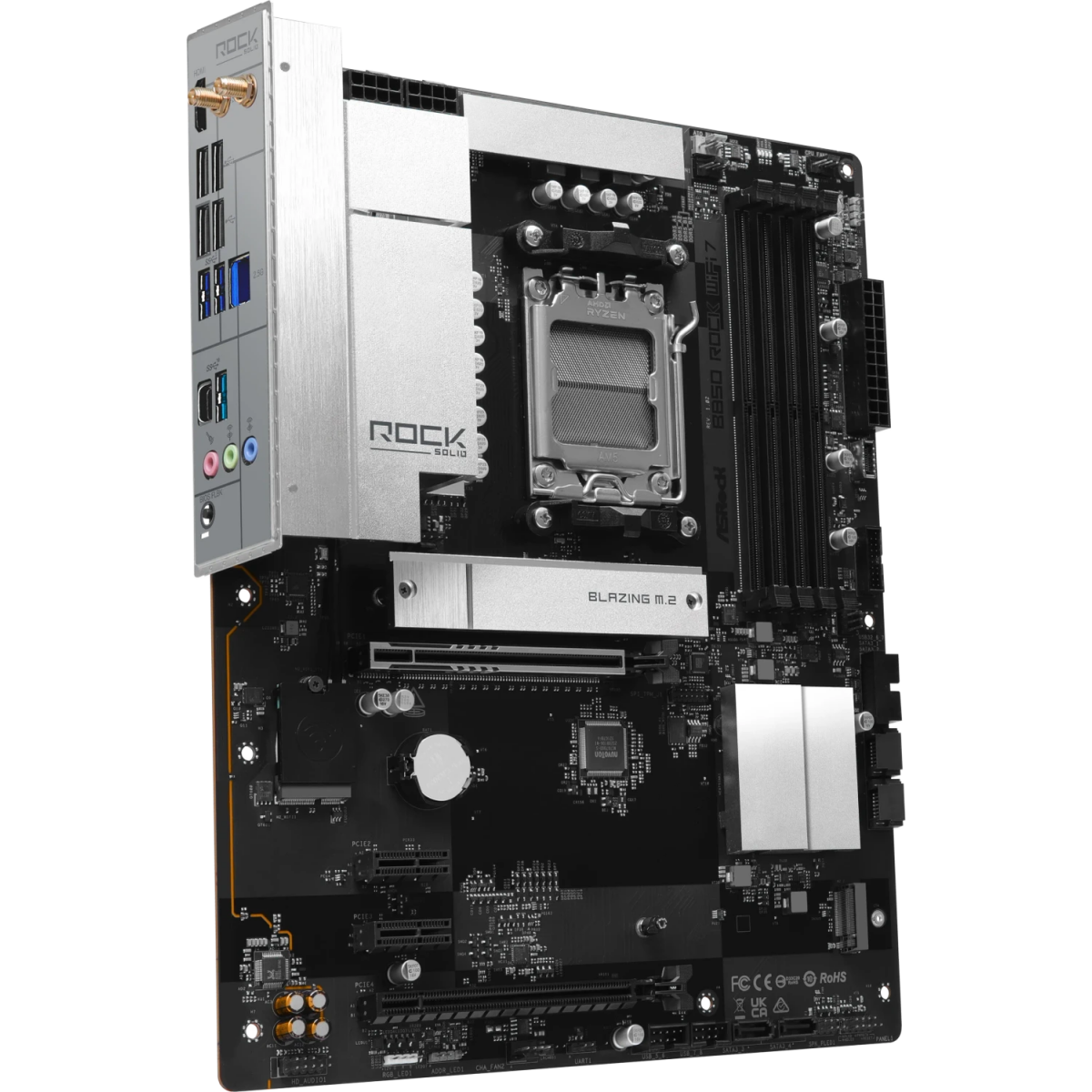

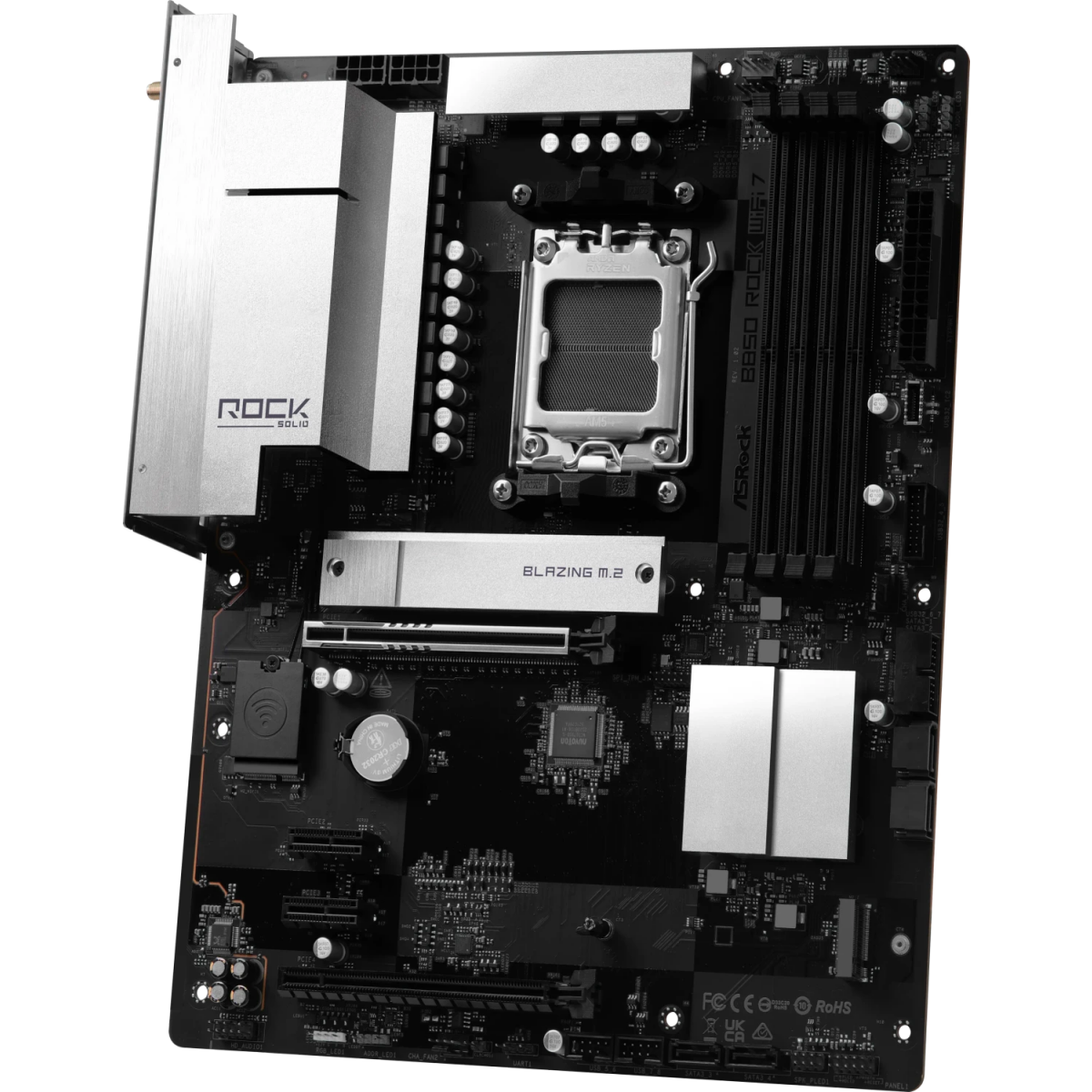

Pamatplate ASRock B850 Rock WiFi7 Black (90-MXBU20-A0UAYZ)
ID: 45753
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B850
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCIe 4.0 x1
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 3 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, RJ-45
- Formfaktors: ATX
Pilnas specifikācijas
163,50 €163,50 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90-MXBU20-A0UAYZ
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B850
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek RTL8125BG
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
3-pin, 6 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
2 x 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, 2 x USB 3.2 Gen1
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3 x 3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Saskarnes

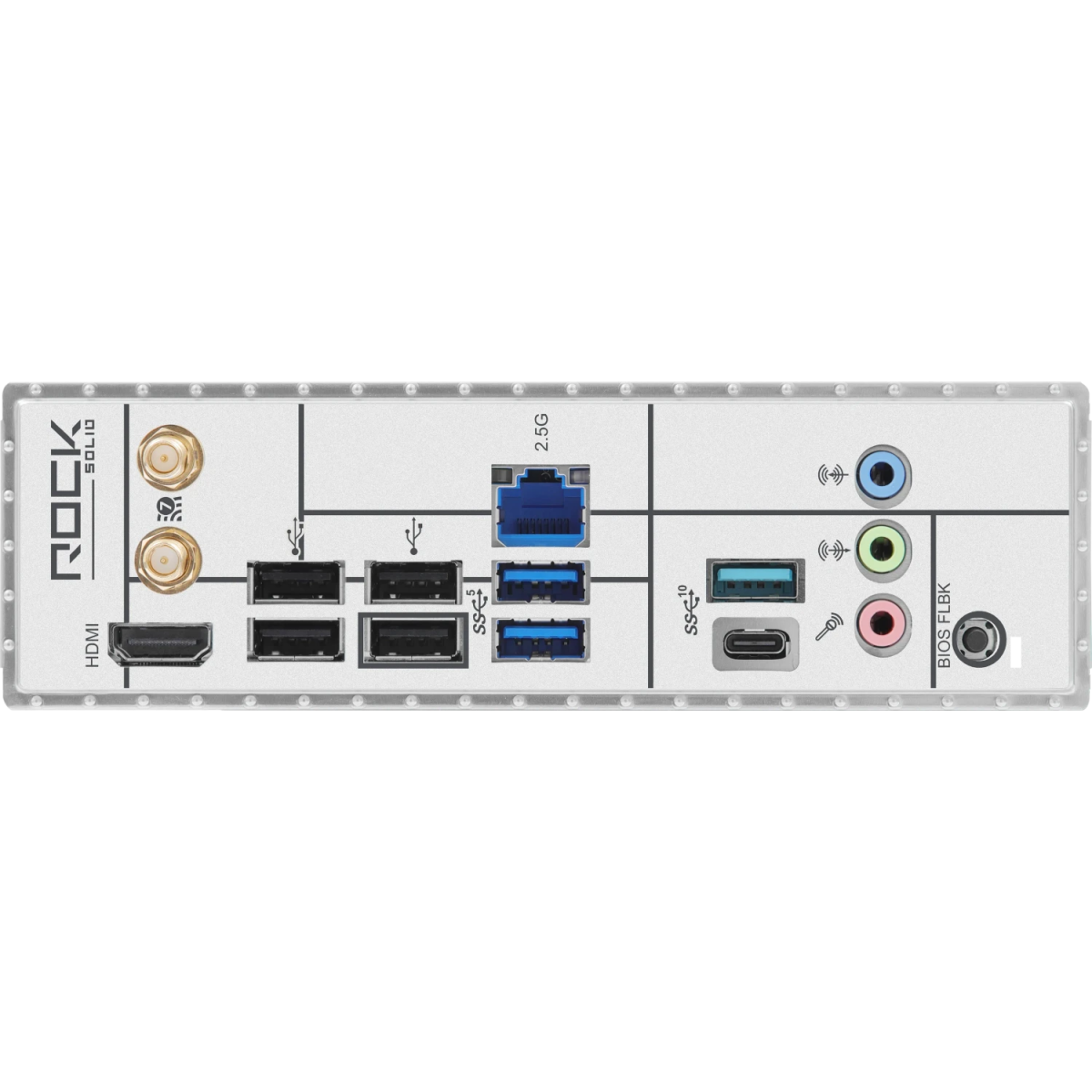

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 3 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, RJ-45
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCIe 4.0 x1
M.2. slotu veids ........................................................................................................................................................................................................
1 × M.2 (Key M) — PCIe Gen5 ×4
1 × M.2 (Key M) — PCIe Gen4 ×4
1 × M.2 (Key E) — PCIe (WiFi/BT)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
- PCIe Gen5:
- PCIE1 (x16)
- M2_1 (x4)
(only with Ryzen 9000/7000)
- PCIe Gen4:
- PCIE4 (x4/x2 depending on CPU)
- PCIE2/PCIE3 (x1)
- M2_1 (with Ryzen 8000)
- M2_2 (x4)
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
305 x 244 x 36 mm
Svars ........................................................................................................................................................................................................
1 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
