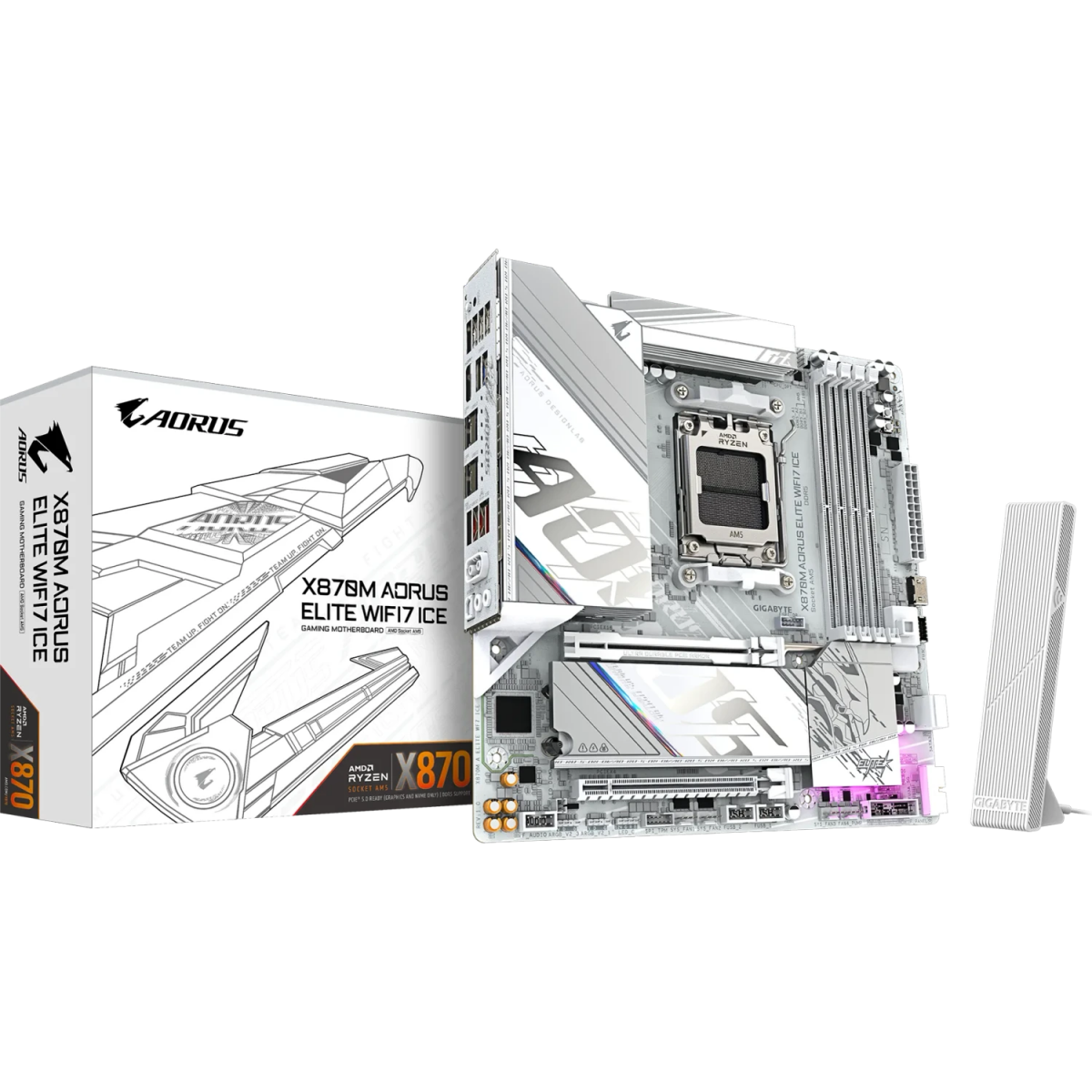

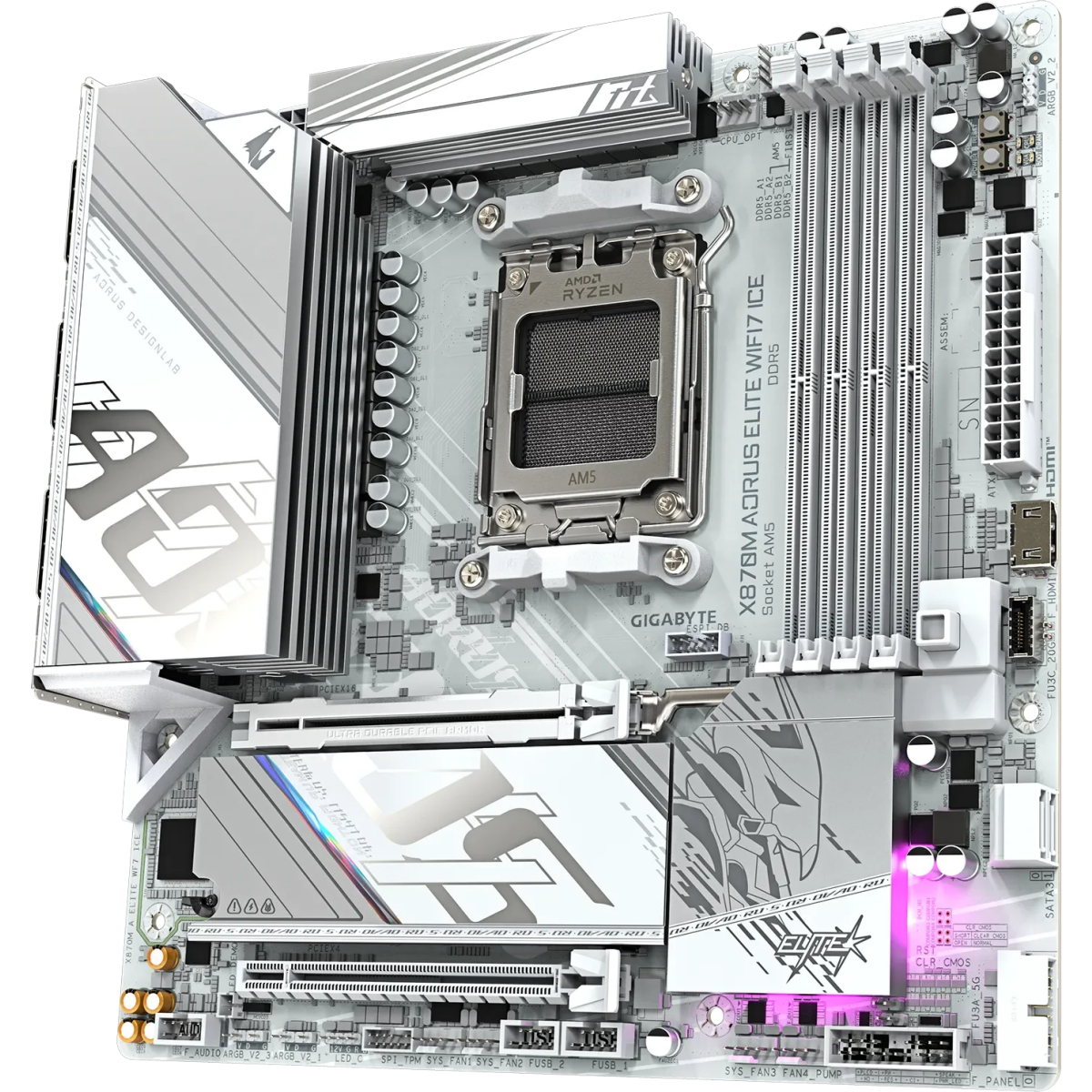

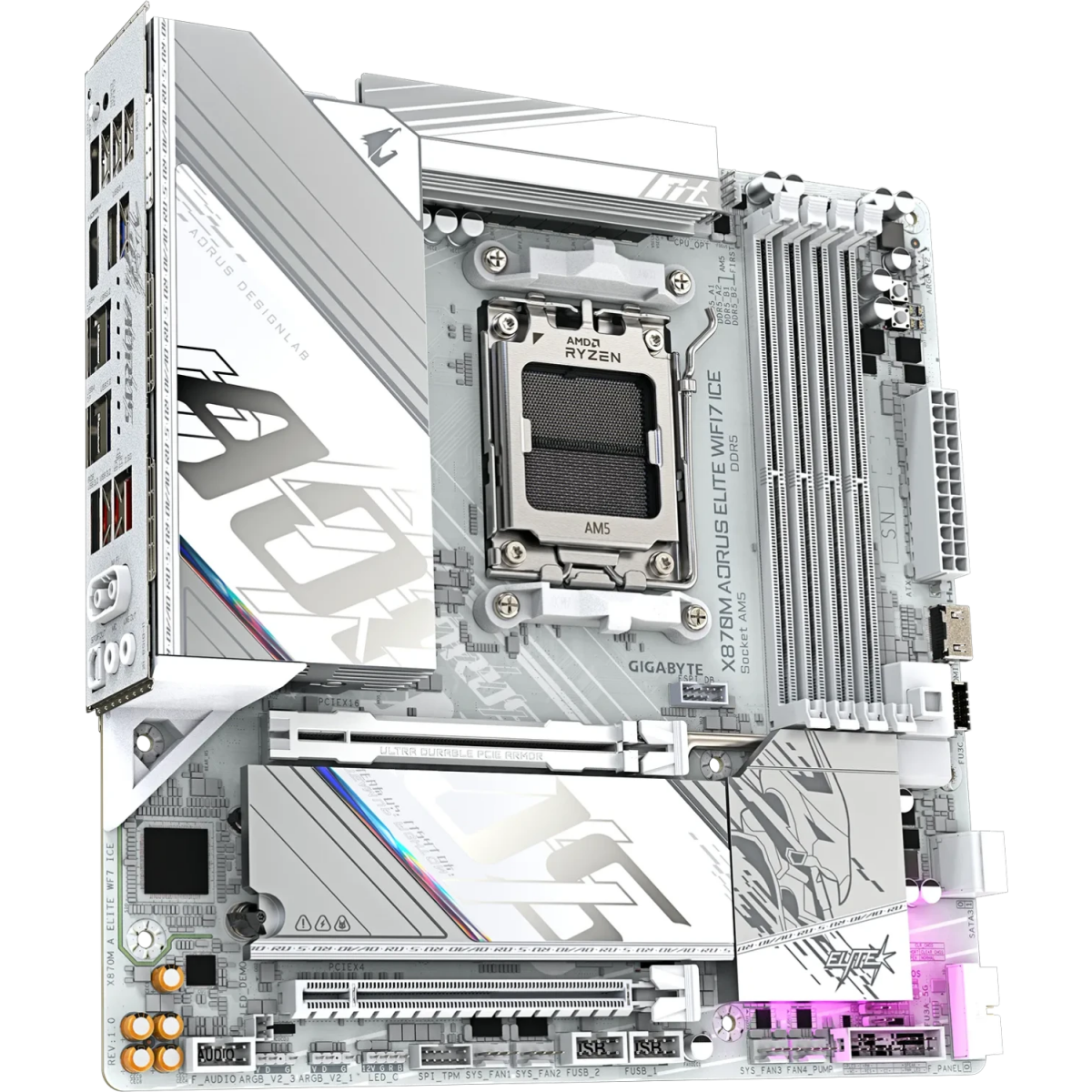

Pamatplate GIGABYTE X870 X870M AORUS Elite WIFI7 ICE White (X870M A ELITE WF7 ICE)
ID: 45923
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD X870
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 4.0x4, 2 x PCI-E M.2
- Grafiskā mikroshēmas kopa: Radeon Graphics
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
- Formfaktors: mATX
Pilnas specifikācijas
272,40 €272,40 €
Ir noliktavāPamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
X870M A ELITE WF7 ICE
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek 2.5Gbps
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
5 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3 x 3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts, sudraba
Saskarnes

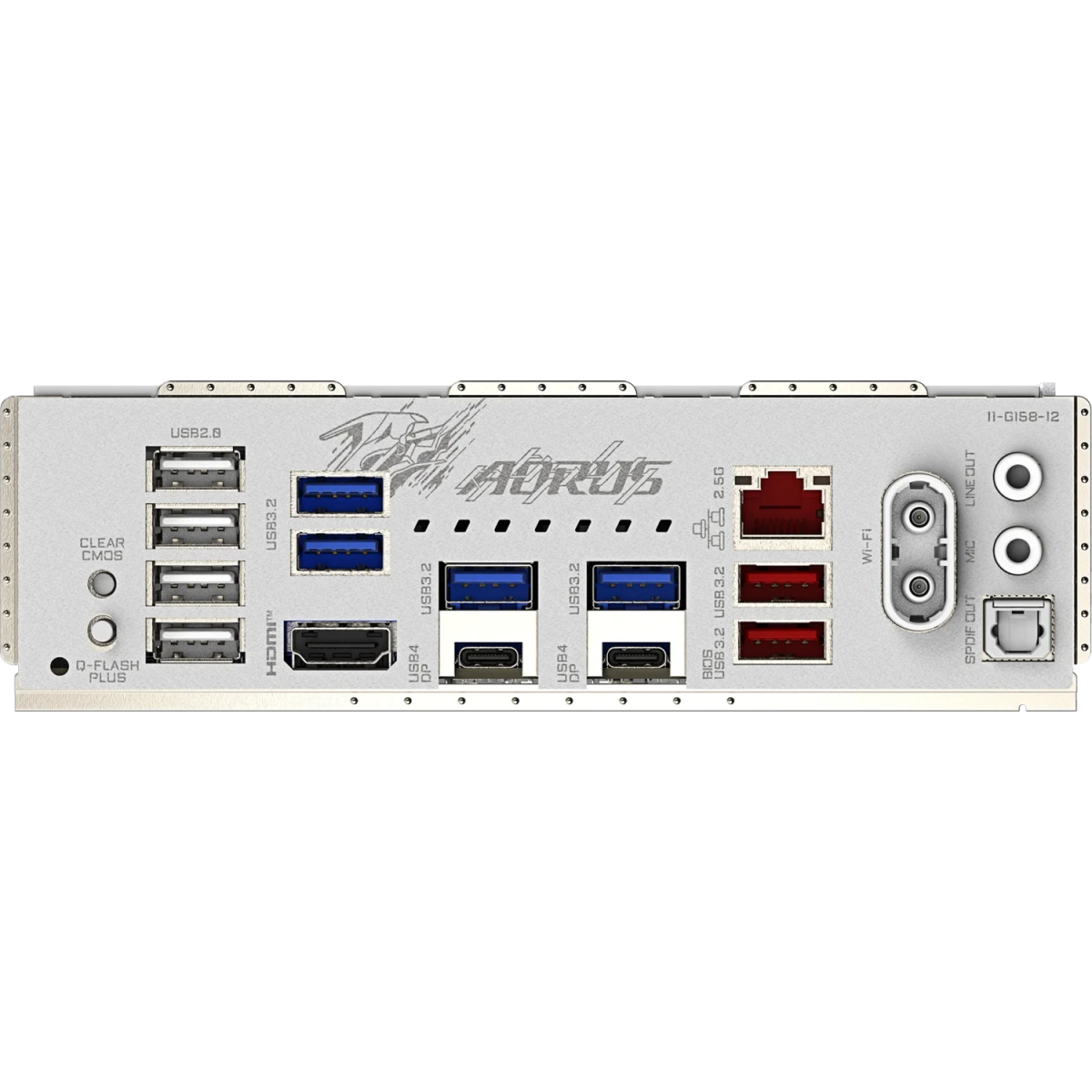

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 2 x audio jacks, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
2 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCIe 4.0x4, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Total M.2 Slots: 2
Interface Type: PCIe NVMe (Socket 3, M key)
Max Speed: PCIe 5.0 (Slot 1), PCIe 4.0 (Slot 2)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
The board supports PCIe 5.0, PCIe 4.0, and PCIe 3.0 (backwards compatible) modes.
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Radeon Graphics
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1220
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
244 x 244 x 36 mm
Svars ........................................................................................................................................................................................................
1.2 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
